Dune Tile

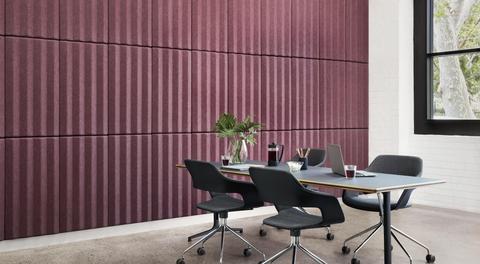

Dune formed tiles offer a beautiful three-dimensional acoustic finish for walls.
Tiles can be mounted uniformly to create a ripple effect or rotated to produce a smooth large-scale diamond design. Installed using a series of clips, without the need for adhesive, tiles can be popped out to reconfigure the design or for replacement, and remain uncontaminated for end of life recycling. The tiles design profile and material combine to offer high sound absorption results, ideal for controlled reverberated noise in offices, learning and hospitality spaces.
Colourways
908
101
447
269
487
542
660
349
Product Specifications
Designer:
Bang Design in collaboration with Woven Image
Dimensions:
Length: 500mm (+/- 5mm), Width: 500mm (+/- 5mm), Depth: 50mm (+/- 5mm), Thickness: 4mm (+/- 0.5mm)
Composition:
100% PET (27% Recycled)
Fire Test Result:
AS 3837: Group 3
ASTM E84 Unadhered: Class 1 or A
BS 476: Class 2Y
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
Weighted Alpha Coefficient (αw):
Direct Fix: 0.50 (MH)
Sound Absorption Average (SAA):
Direct Fix: 0.58
Noise Reduction Coefficient (NRC):
Direct Fix: 0.60
Sound Absorption Class:
D (Direct fix)
Sustainability
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Downloads
- PDFCare and Cleaning Guide Mura Unprinted Composite Panels and Tiles.pdf
- PDFInstallation Guide_Wave and Dune Tiles.pdf
- PDFFire Test Report AS 3837_Dune Tile_Wave Tile.pdf
- PDFFire Test Report ASTM E84_Dune Tile_Wave Tile.pdf
- PDFFire Test Report BS 476_Dune Tile_Wave Tile.pdf
- PDFGreentag Certificate Wave and Dune Tiles.pdf
- PDFMaterial Safety Datasheet Wave & Dune Tile.pdf
- PDFSound Absorption Test Report_Direct fix_Dune Tile.pdf
- PDFVOC Emission Test Certificate CA01350 Ascent Tile Dune Tile Wave Tile.pdf
- PDFVOC Emission Test Certificate ASTM D15116 17 Ascent Tile Dune Tile Wave Tile.pdf
- PDFVOC Emission Test Certificate_Ascent Tile_Dune Tile_Wave Tile.pdf
- PDFWoven Image Product Warranty.pdf
