Frequency was the first and is still the most-loved printed pattern on 12mm EchoPanel®.

Its design was inspired by the concept of sound and communication, reflecting the importance of acoustic comfort to productivity and wellbeing. Its sound bar motif features both contrasting and tonal colour selections, with either matte or pearlescent ink finishes. Printed on both sides, EchoPanel® Frequency is perfect for double-sided partitions and screens, or as a standard feature wall application.

Colourways

Frequency 503 Calcite

503

Frequency 907 Sandstone

907

Frequency 402 pebble

402

Frequency 100 Ice

100

Frequency 580 Sage

580

Frequency 444 Smoke

444

Frequency 544 Starlight

544

Frequency 545 Steel

545

Frequency 274 Orchid

274

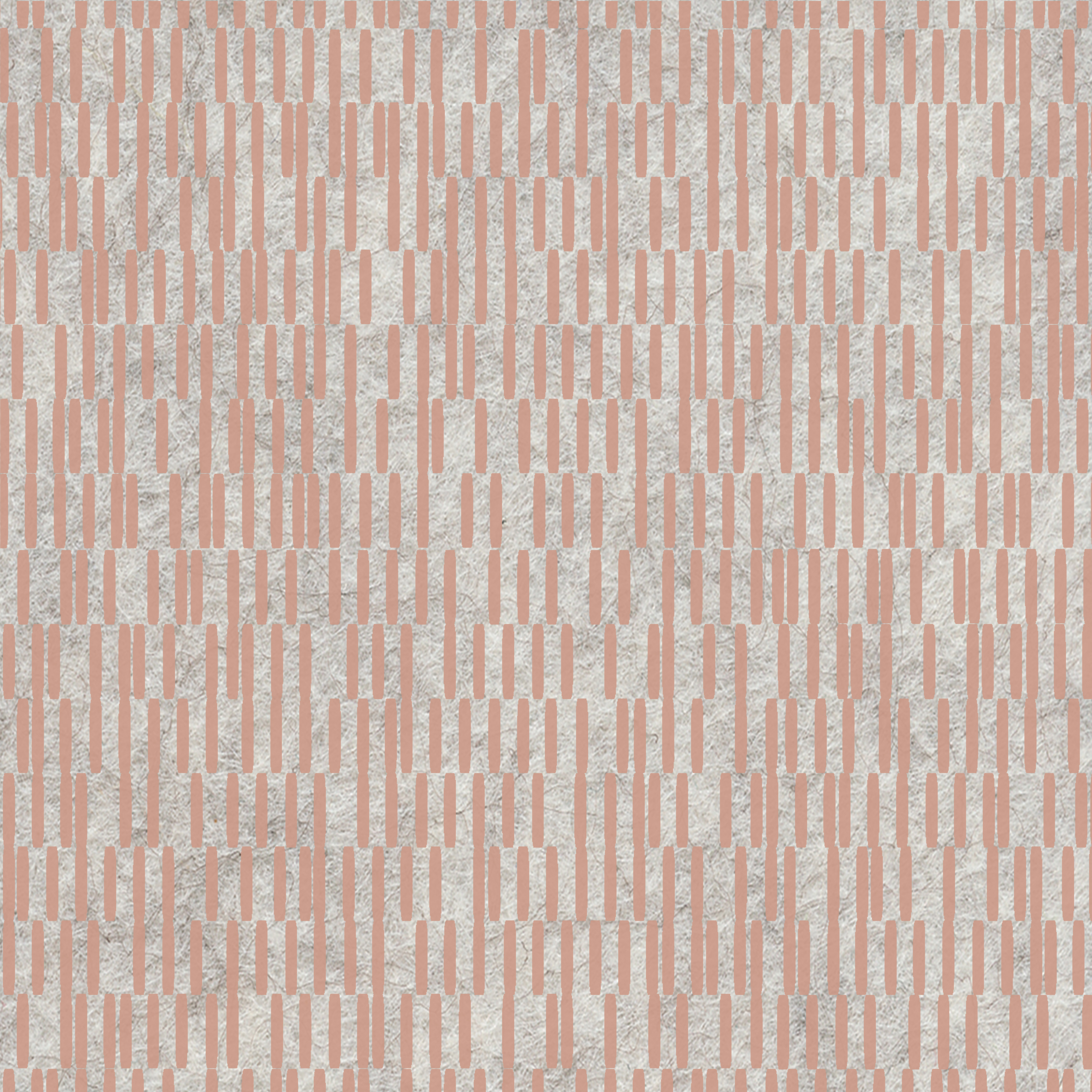

Frequency 487 Blush

487

Frequency 294 Ruby

294

Frequency 576 Magenta

576

Frequency 124 Ochre

124

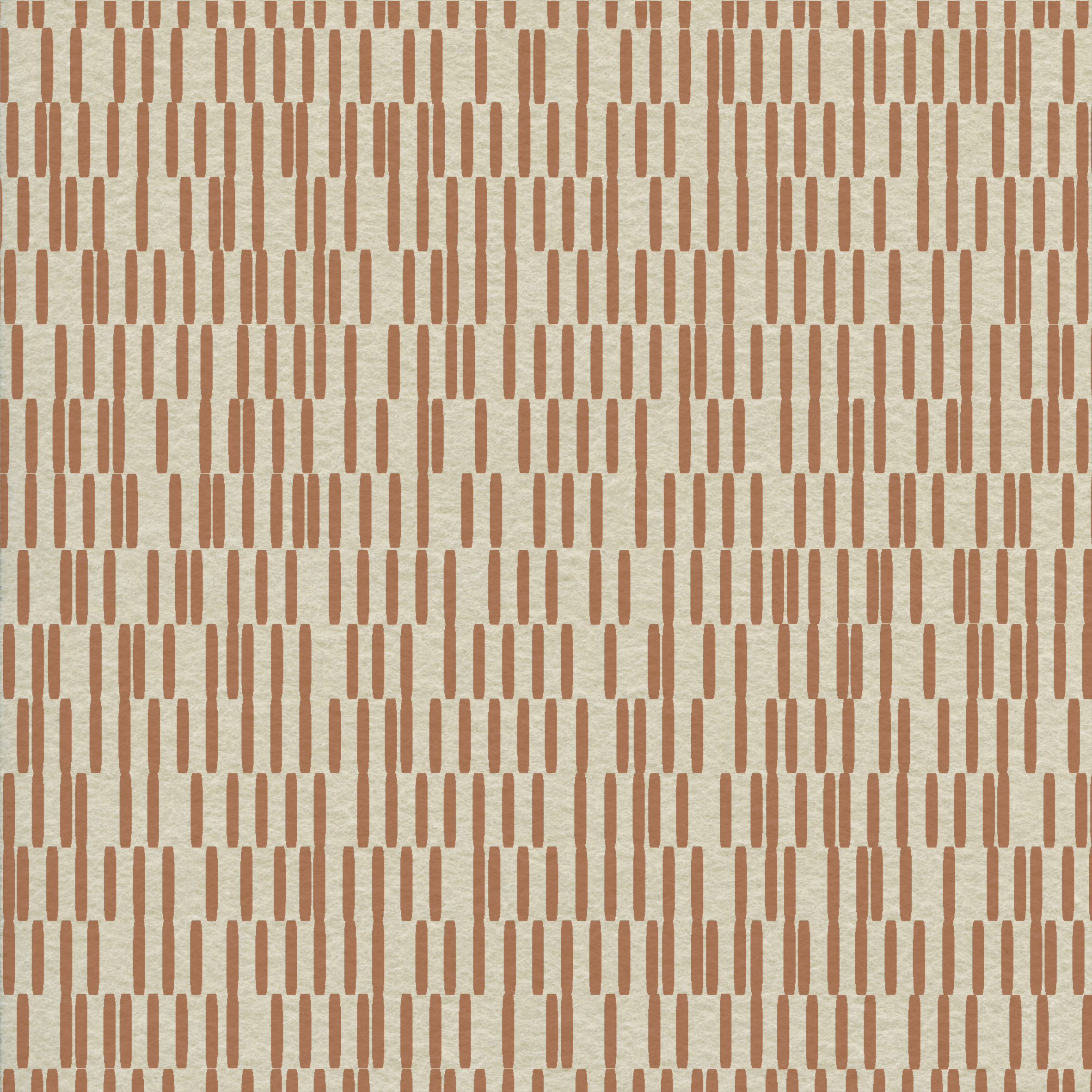

Frequency 167 Cinnamon

167

Frequency 349 Vineyard

349

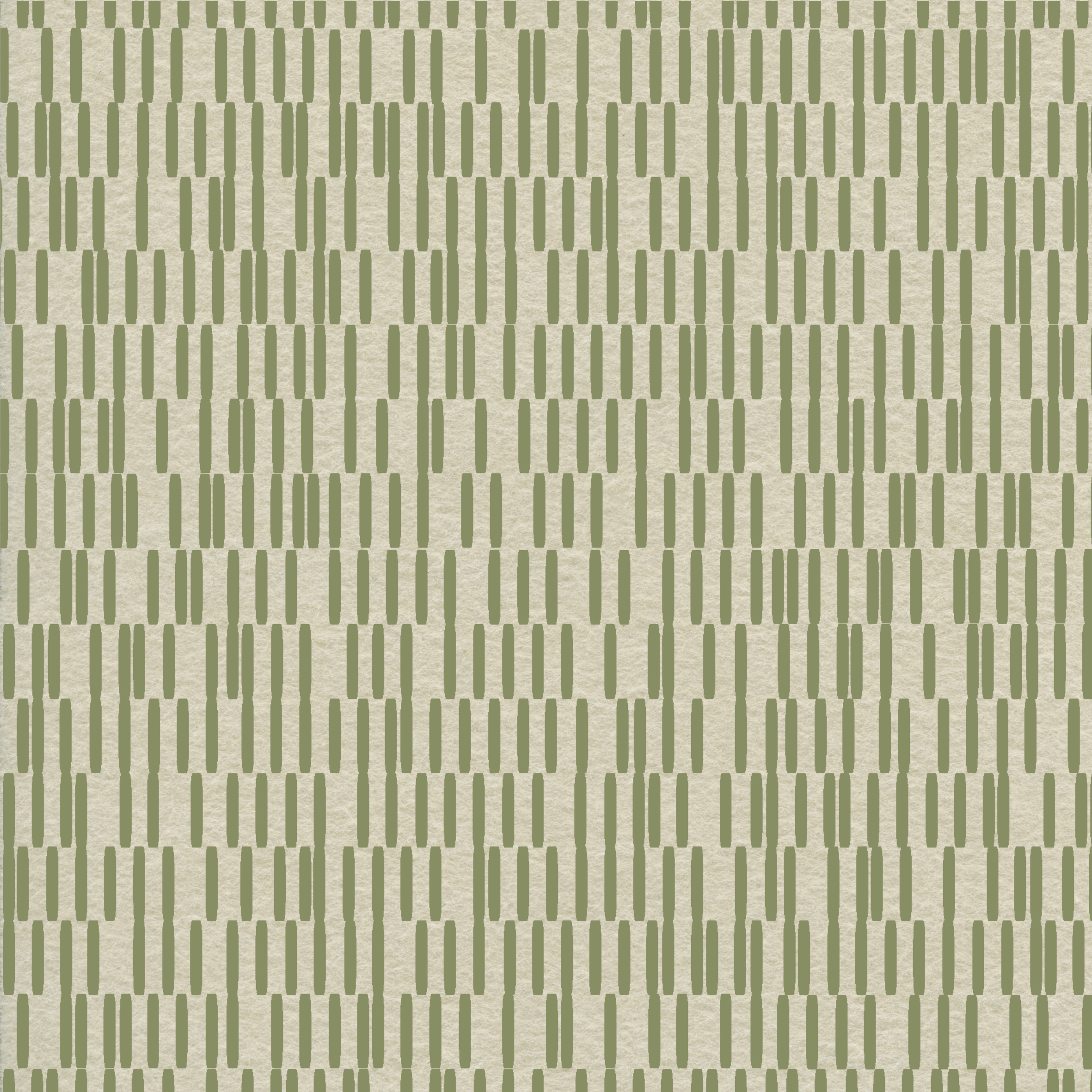

Frequency 384 Olive

384

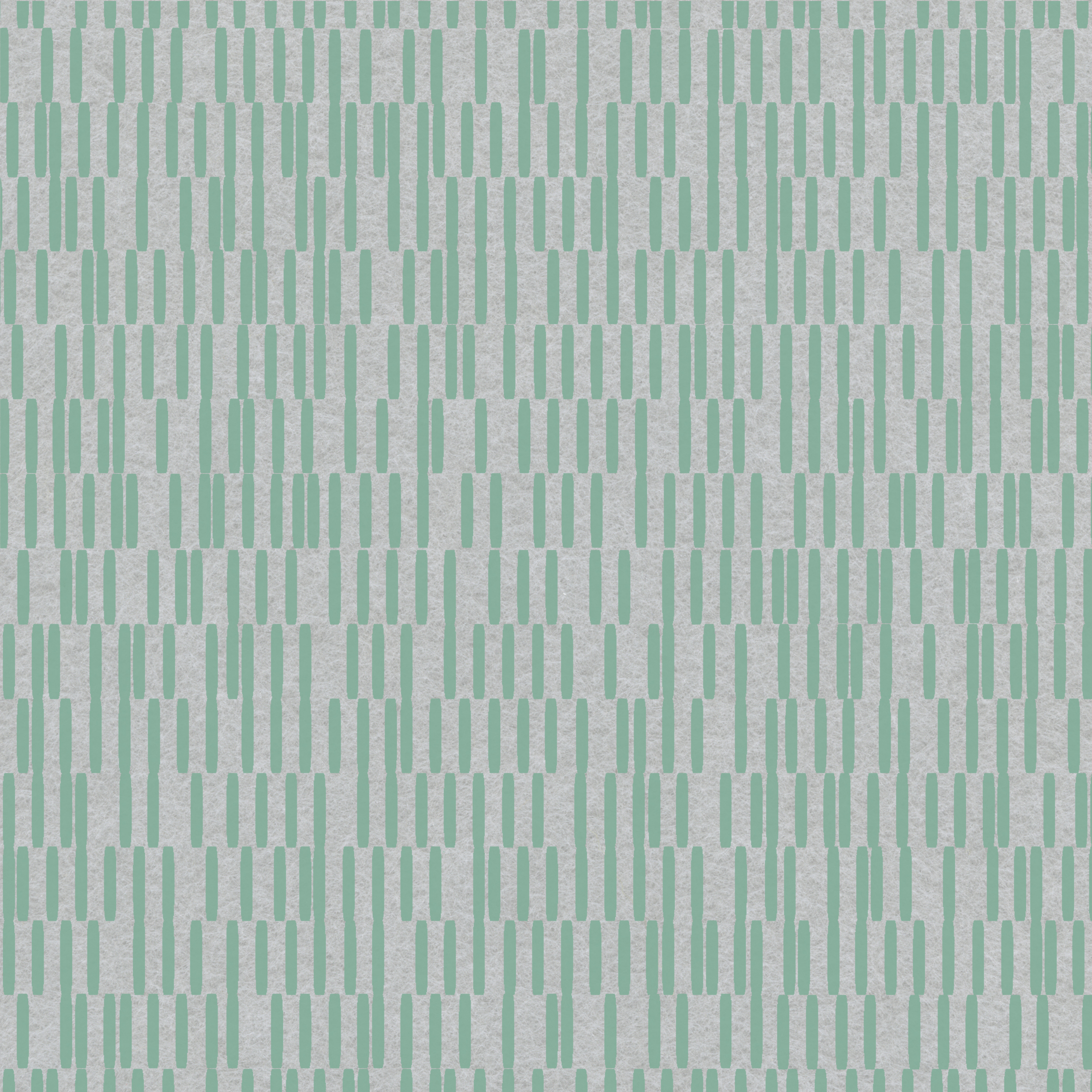

Frequency 621 Foam

621

Frequency 633 Pacific

633

Frequency 660 Coronet

660

Frequency 365 Navy

365

Product Specifications

Designer:

Woven Image

Dimensions:

Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)

Pattern Repeat:

Horizontal: 300mm, Vertical: 327mm

Composition:

100% PET (60% post-consumer recycled)

Fire Test Result:

AS 1530.3
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0

Sound Absorption Test Method:

AS ISO 11654: 2002 (2016)
AS ISO 354: 2006 (R2016)
ASTM C423 - 17

Weighted Alpha Coefficient (αw):

Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75

Sound Absorption Class:

D (Direct fix)
D (20mm air gap)
C (50mm air gap)
