Gem Embossed Panel

Gem's design is reminiscent of expanded mesh, with offset diamond-like shapes creating a lattice impression across the panel.

Reducing reverberated noise in shared spaces, these tactile acoustic panels are ideal for floor to ceiling applications, and pattern match for continuous wall and double-height installations. The embossed panel series is manufactured using at least 50% recycled content and utilising green energy. The collection is Global GreenTag™ certified, has published ingredient transparency through Declare and low VOC emissions.

Colourways

908

101

468

721

402

580

349

384

274

106

124

495

487

484

167

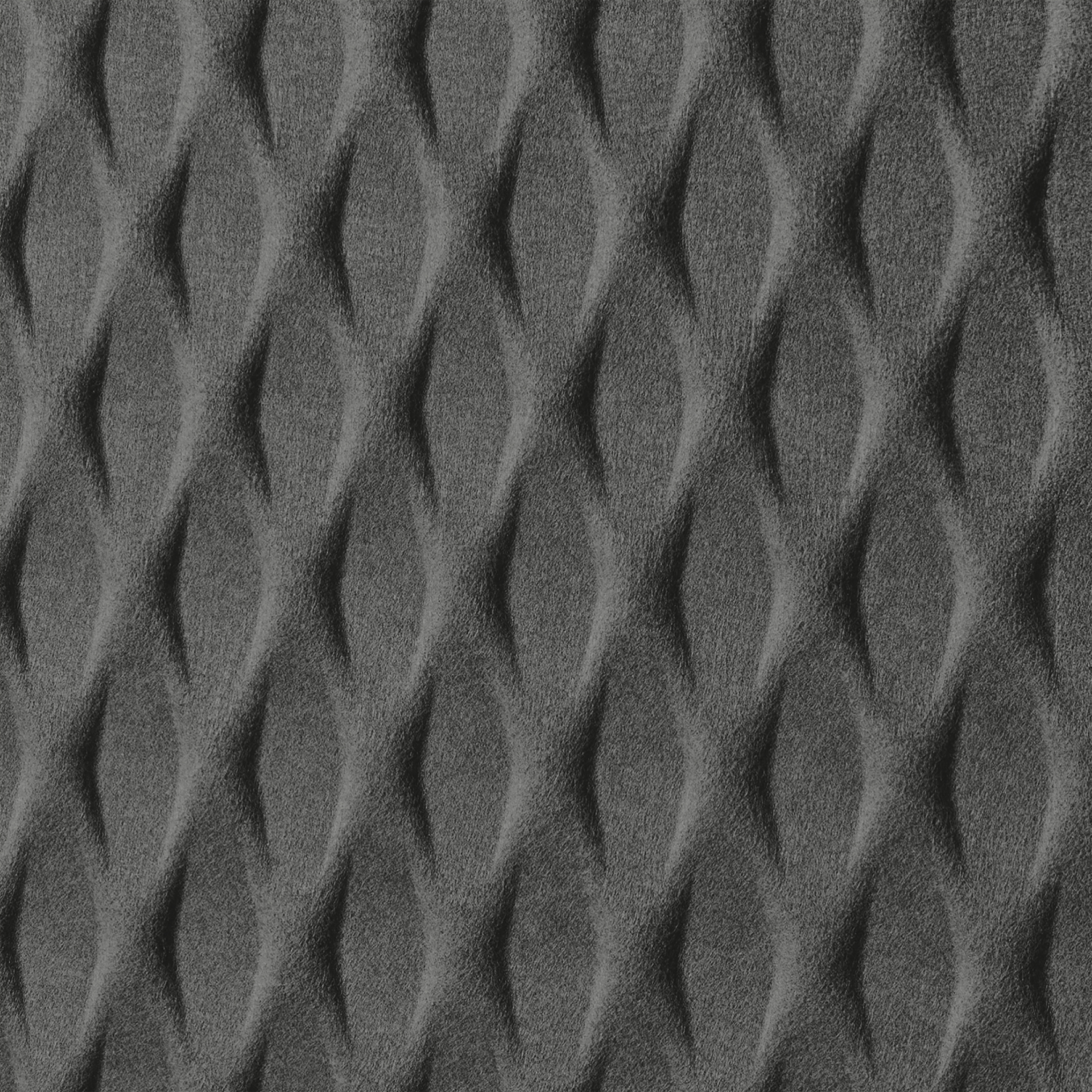

447

573

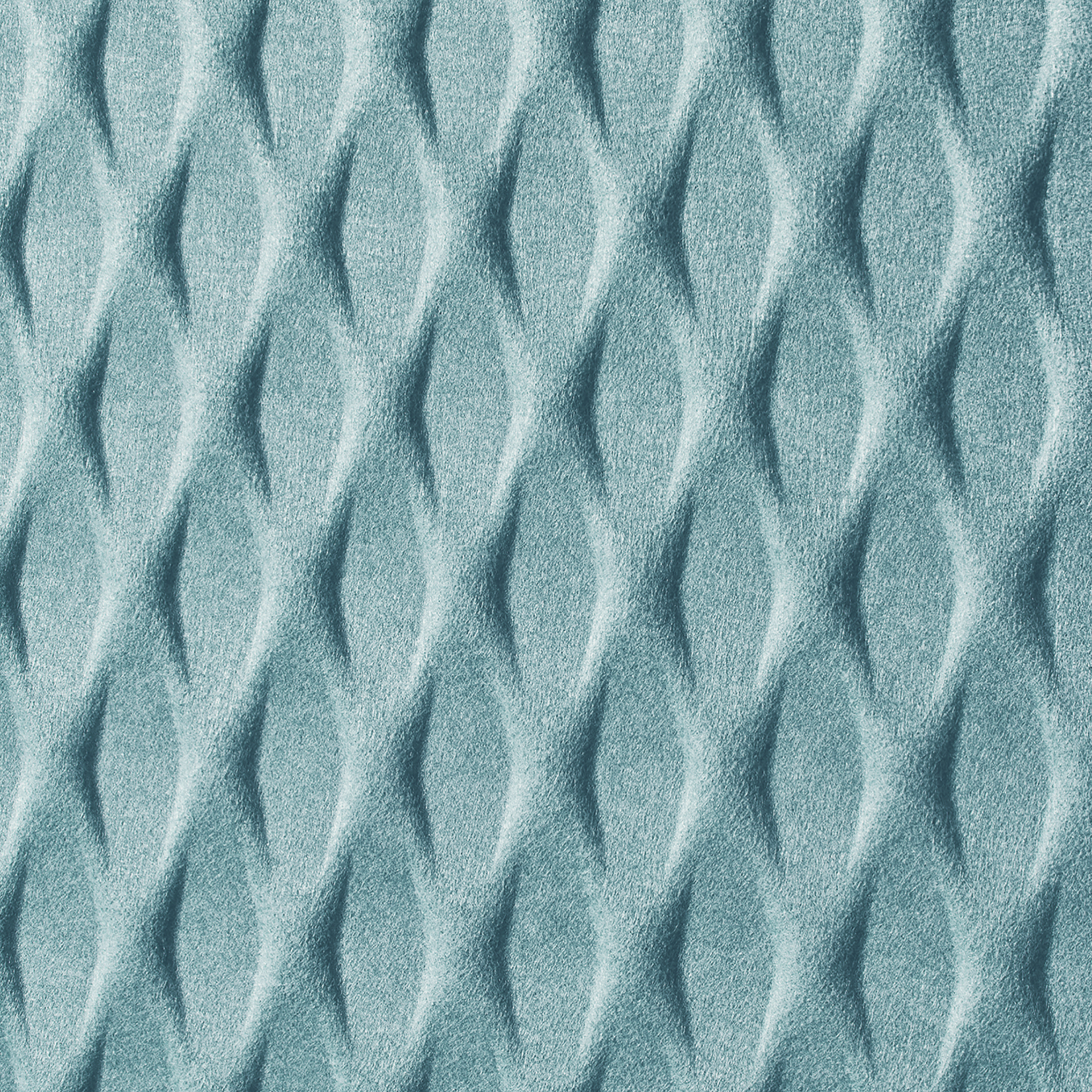

551

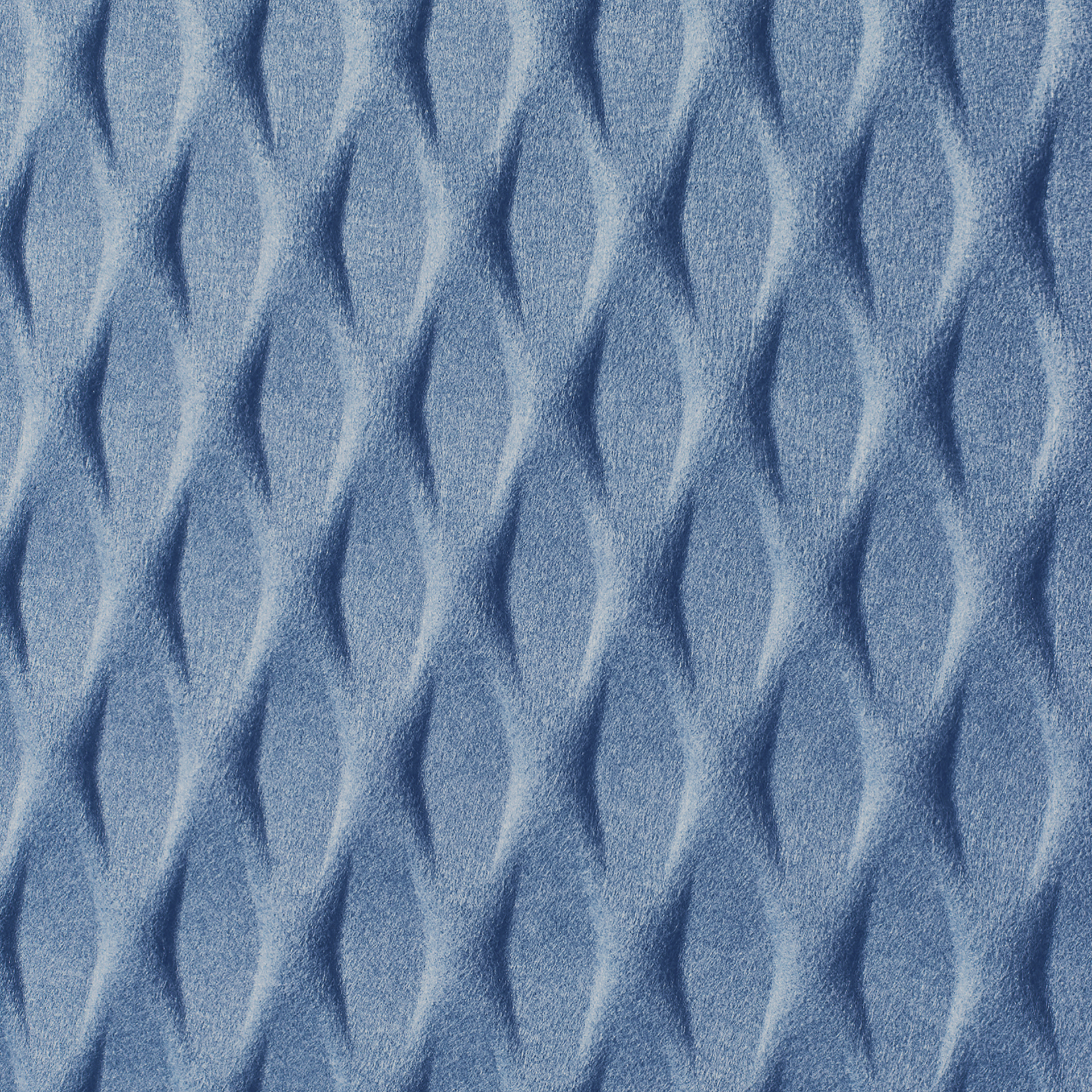

660

550

Download Colourways

Order Sample

Product Specifications

Designer:

Woven Image

Dimensions:

Length: 2800mm (+/-3mm), Width: 1130mm (+/- 3mm), Thickness: 9mm (+/- 7%)

Composition:

98.5% PET (50% post-consumer recycled) & 1.5% PE

Fire Test Result:

AS ISO 9705 & AS 5637.1: Group 1. SMOGRArc <100 (m²/s²x1000)
C/VM2 - Verification Method - Group 1-S. Average smoke production rate (m²/s) <5
For further information contact designlink@csr.com.au

Sound Absorption Test Method:

AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)

Weighted Alpha Coefficient (αw):

Direct fix: 0.20 (H)

Sound Absorption Average (SAA):

Direct fix: 0.29

Noise Reduction Coefficient (NRC):

Direct fix: 0.30

Sound Absorption Class:

E (Direct fix)

Download Technical Reports Download Specification

Our panel trims deliver a clean and refined finish - perfect for concealing uneven edges and panel joins. Available in black or silver and compatible with 9mm, 12mm, and 24mm panel thickness.

Sustainability

Global GreenTag™ GreenRATE Level A

A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.

Declare

A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.

Red List Free

Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.

Low VOC Emissions

Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).

Australian Made

Identifies products that are genuinely made in Australia.

Clean Air GOLD

An Intertek certification that verifies products meet strict low VOC emission requirements through independent testing. Clean Air-certified products support healthier indoor air quality and can contribute to achieving points in LEED® and WELL™ building rating systems.
