Zen Embossed Panel
Zen is the first design in our multi award-winning embossed acoustic panel series.
Inspired by the lines and grooves of a Japanese Zen garden, this 3D surface finish interweaves design innovation with sustainability and commercial performance. These sound absorbing panels are made by combining a recycled PET backing with the coloured surface finish of Mura, which is embossed on one face. The back of the panel remains flat for easy installation to walls and ceilings.
Colourways
501
908
454
101
468
721
580
402
487
495
484
269
330
349
384
447
274
106
124
167
573
551
660
550
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2800mm (+/-3mm), Width: 1130mm (+/- 3mm), Thickness: 9mm (+/- 7%)
Composition:
100% PET (51% recycled)
Fire Test Result:
ASTM E84 Unadhered: Class 1 or A
BS EN 13501.1: Classification B - s1, d0
ISO 9705: Group 1
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
ASTM C423 - 17
AS ISO 11654: 2002 (2016)
Weighted Alpha Coefficient (αw):
Direct fix: 0.20 (H), 20mm air gap: 0.35 (MH), 50mm air gap: 0.60 (MH). Achieves an aw of 0.75 with a 18mm acoustic backing
Noise Reduction Coefficient (NRC):
Direct fix: 0.30, 20mm air gap: 0.50, 50mm air gap: 0.70
Achieves an NRC of 0.75 with a 18mm acoustic backing
Sound Absorption Class:
E (Direct fix)
D (20mm air gap)
C (50mm air gap)
Sustainability
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Declare
A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.
Red List Free
Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Installation

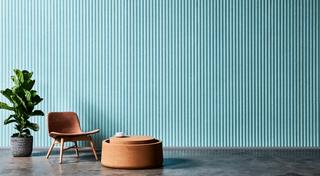

Our Embossed Panel Series can be installed on walls and ceilings. At 2.8m high, they can be applied to walls without a floor-to-ceiling join line. Designs pattern-match side to side and top to bottom, making them suitable for continuous wall and double height installations.
Refer to our Installation Guide and Video for detailed instructions or contact us for recommended installers.
