EchoPanel® Trapeze
EchoPanel® Trapeze is a unique and playful design printed on EchoPanel® 12mm, which features intersecting fine lines.
These printed acoustic panels can be installed horizontally or vertically, and can be printed single or double-sided. The beautiful colourways offer an acoustic solution for workstations, partitions or wall applications in office, education or hospitality fit-outs.

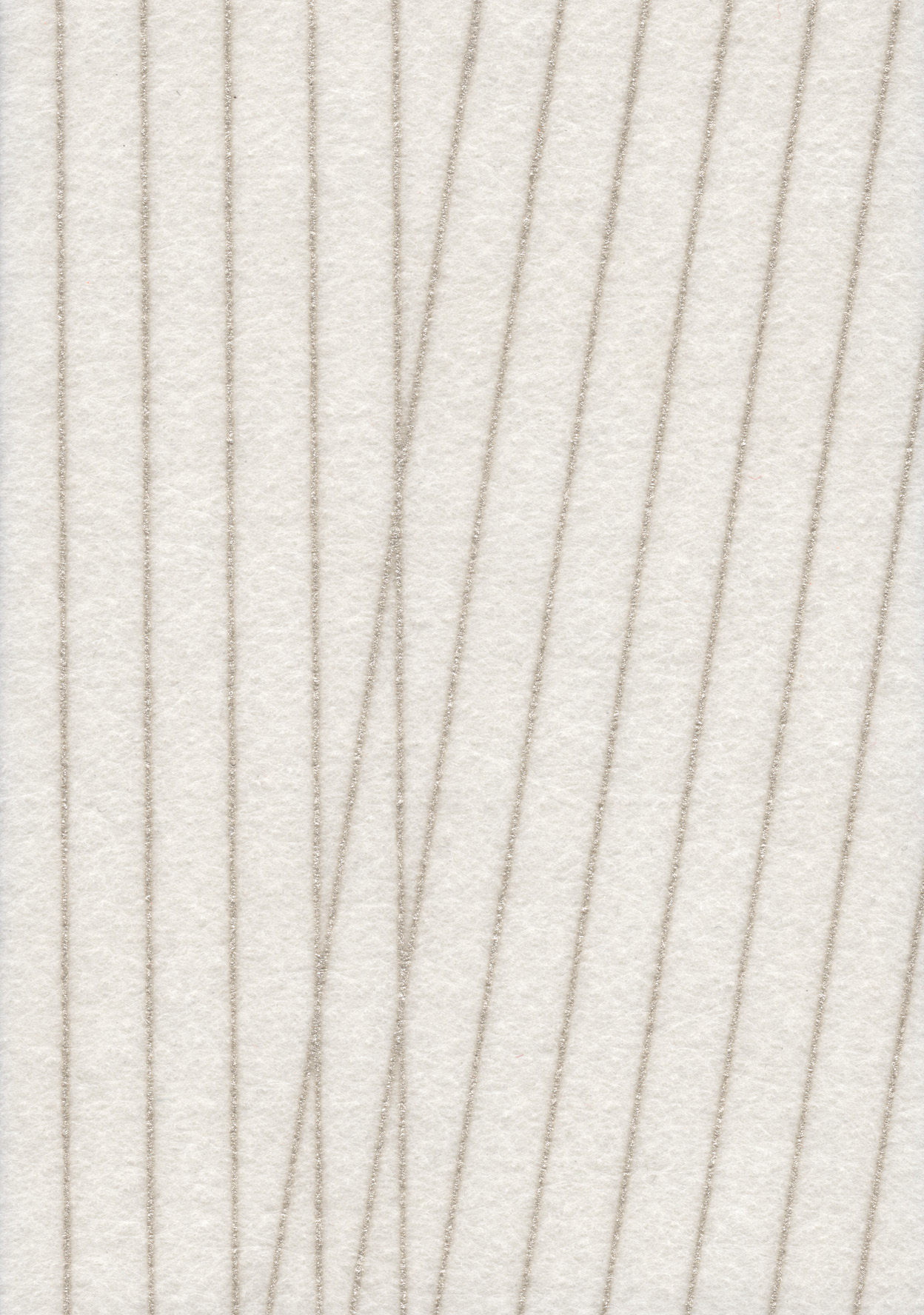

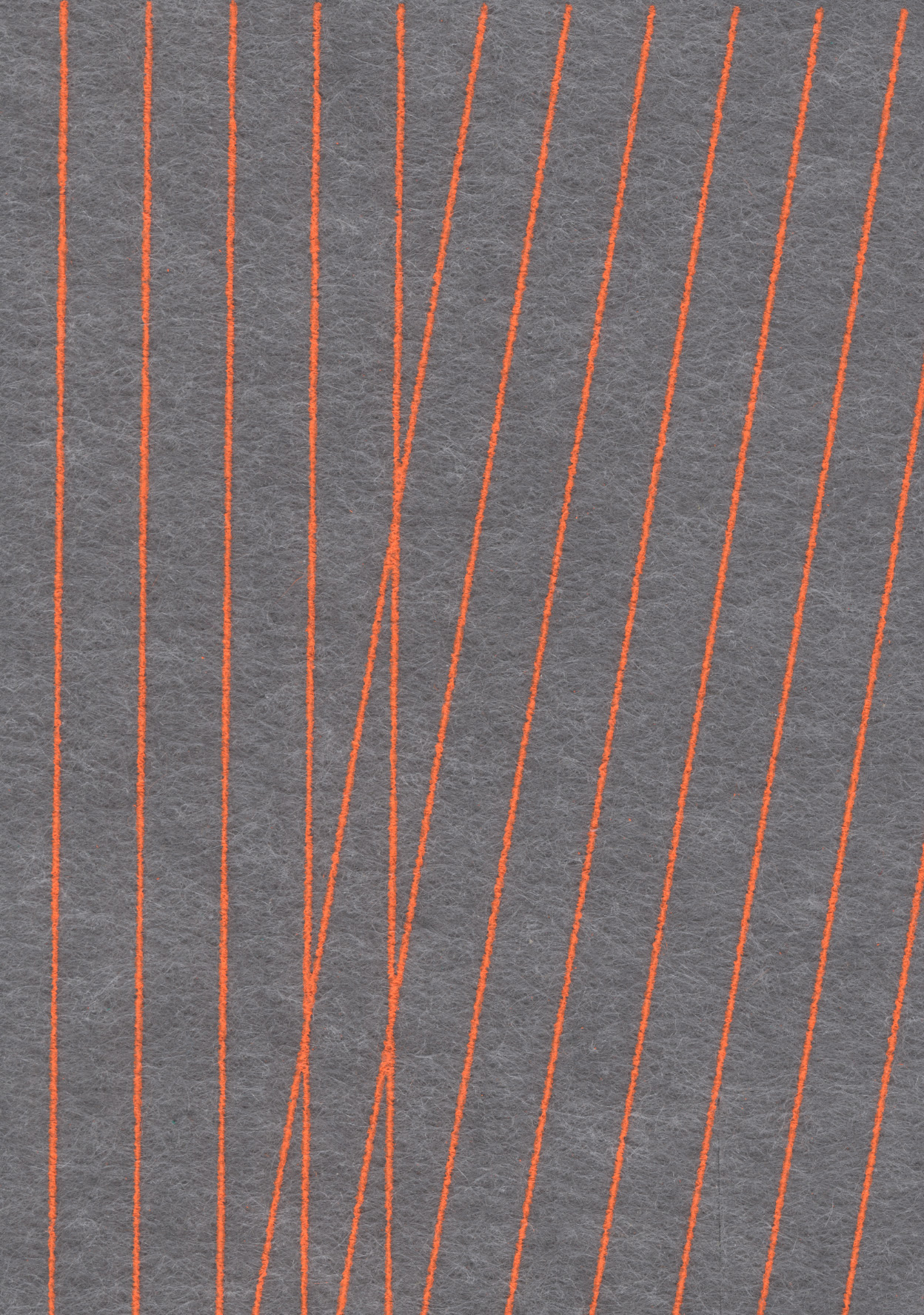

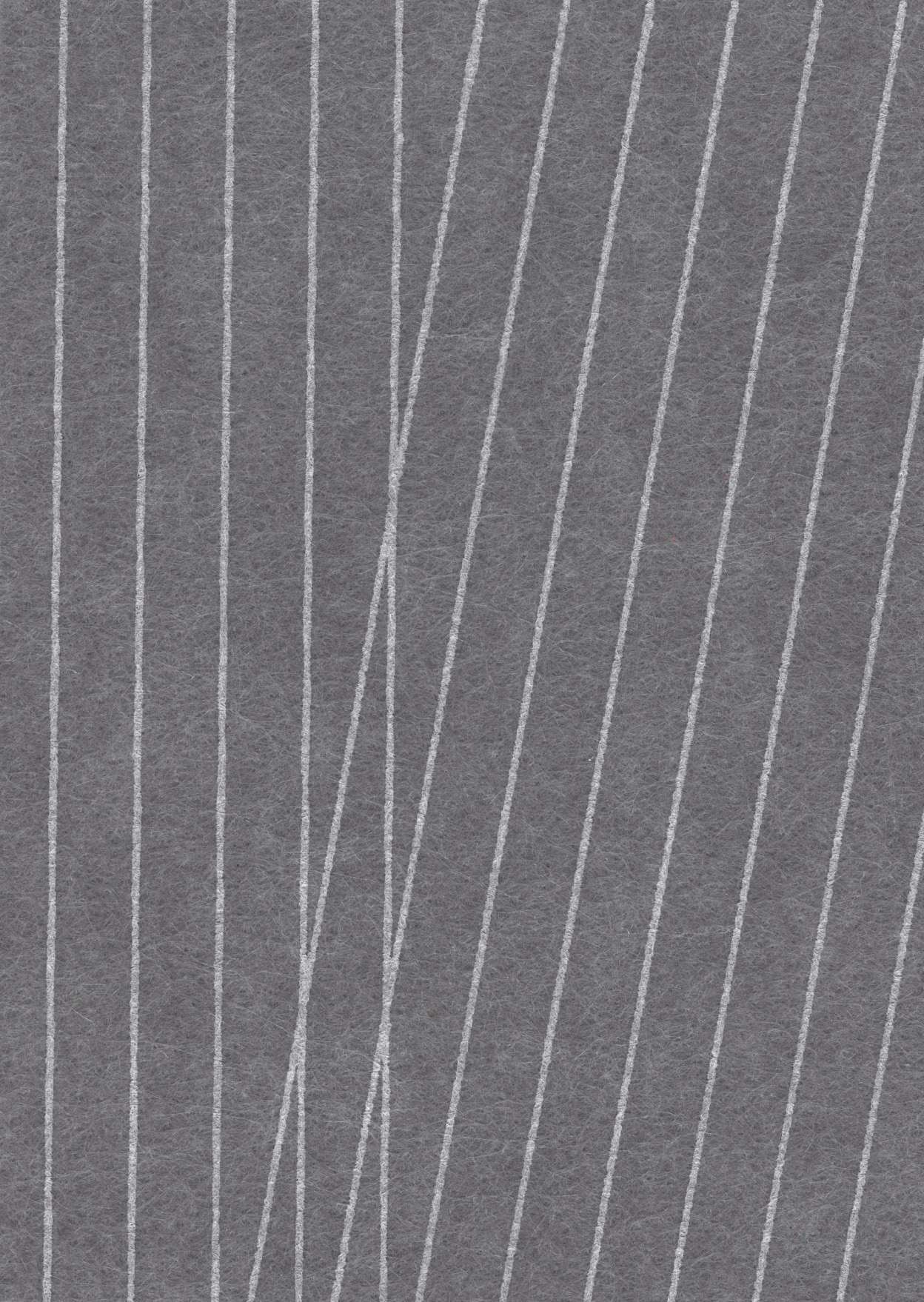

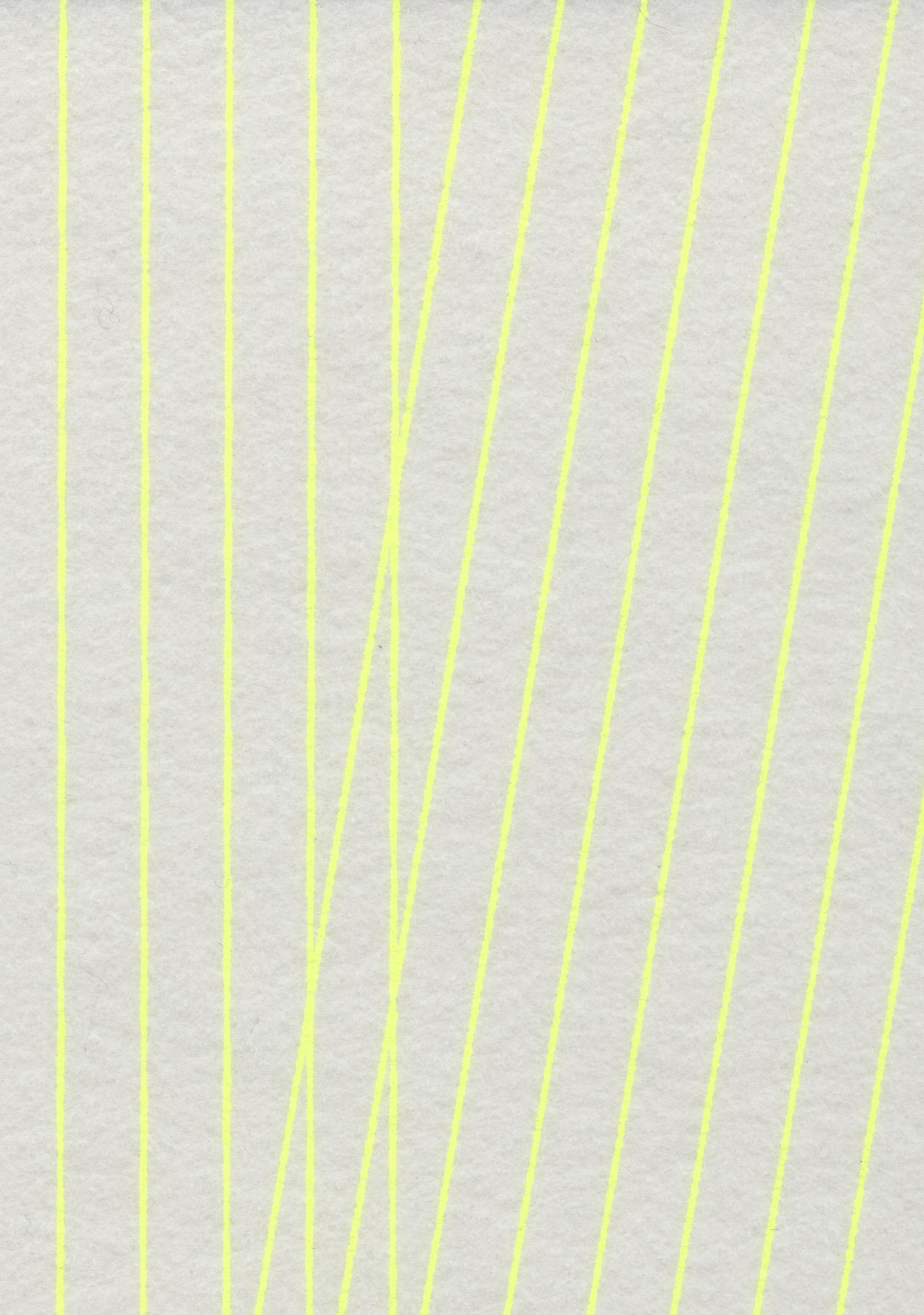

Colourways
503
907
100
580
402
444
544
545
274
294
487
576
124
167
349
384
621
633
660
365
Product Specifications
Designer:
Woven Image (Amy Saunders)
Dimensions:
Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)
Pattern Repeat:
Horizontal: 394mm, Vertical: 589mm
Composition:
100% PET (80% post-consumer recycled)
Fire Test Result:
AS 1530.3
BS EN 13501.1: Classification B - s1, d0
ISO 9705: Group 1
GB 8624 B1
ASTM E84 Unadhered: Class 1 or A
BS EN 45545-2 + A1 Annex C: CIT: 0.05
Other Testing:
Fire tests are based on plain EchoPanel® 12mm
Sound Absorption Test Method:
AS ISO 11654: 2002 (2016)
AS ISO 354: 2006 (R2016)
ASTM C423 - 17
Weighted Alpha Coefficient (αw):
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75
Noise Reduction Coefficient (NRC):
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class:
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
