EchoPanel® Frequency
Frequency was the first and is still the most-loved printed pattern on 12mm EchoPanel®.
Its design was inspired by the concept of sound and communication, reflecting the importance of acoustic comfort to productivity and wellbeing. Its sound bar motif features both contrasting and tonal colour selections, with either matte or pearlescent ink finishes. Printed on both sides, EchoPanel® Frequency is perfect for double-sided partitions and screens, or as a standard feature wall application.

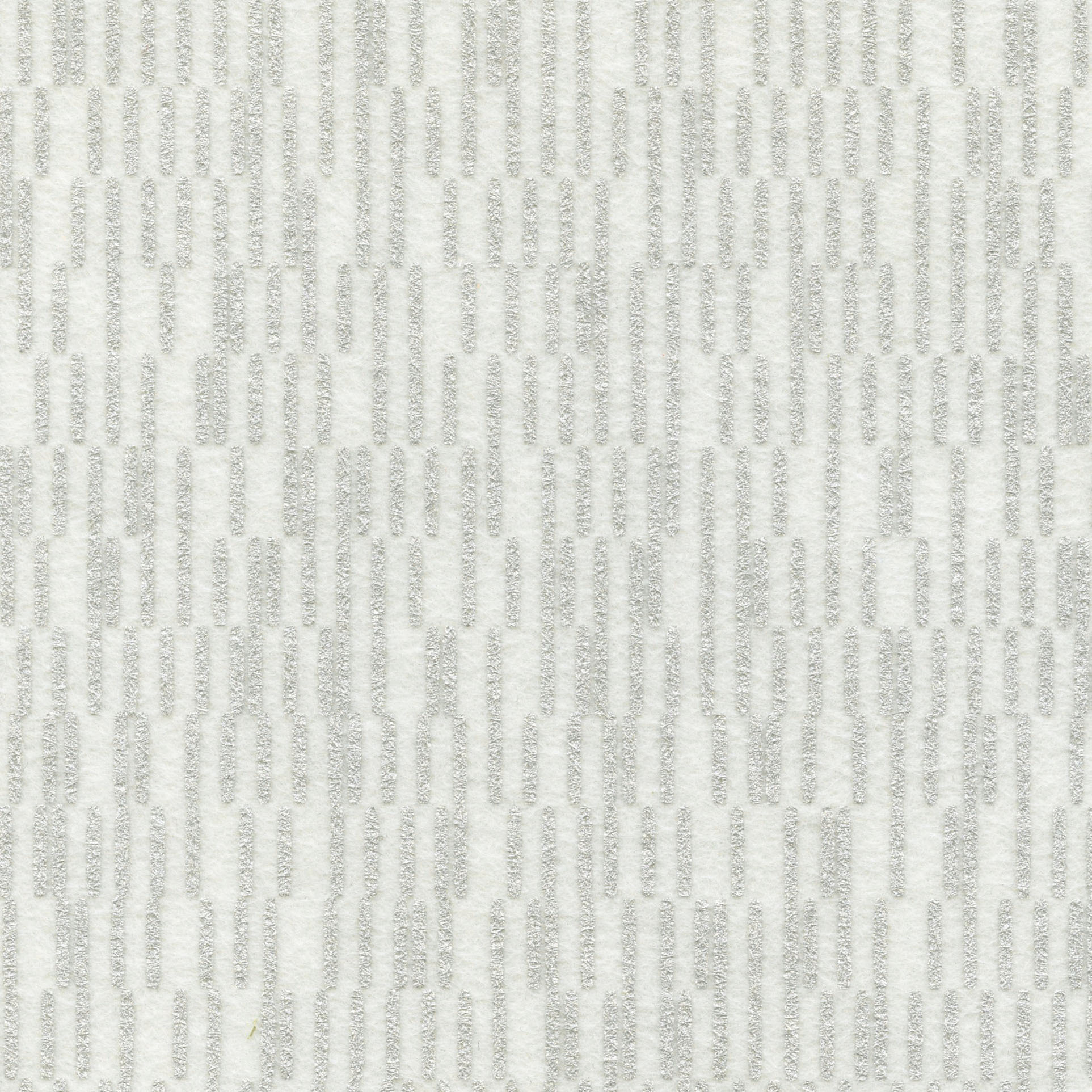

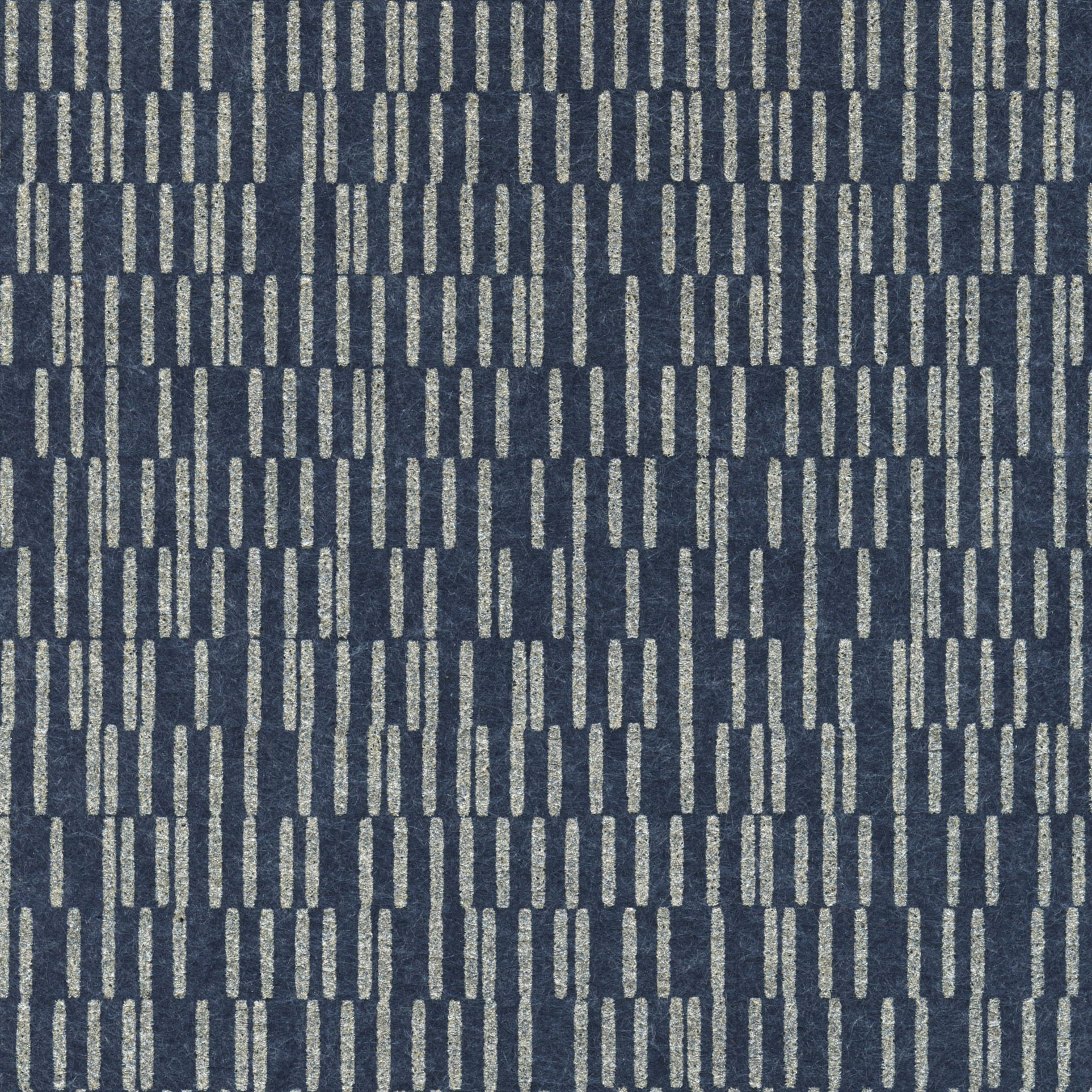

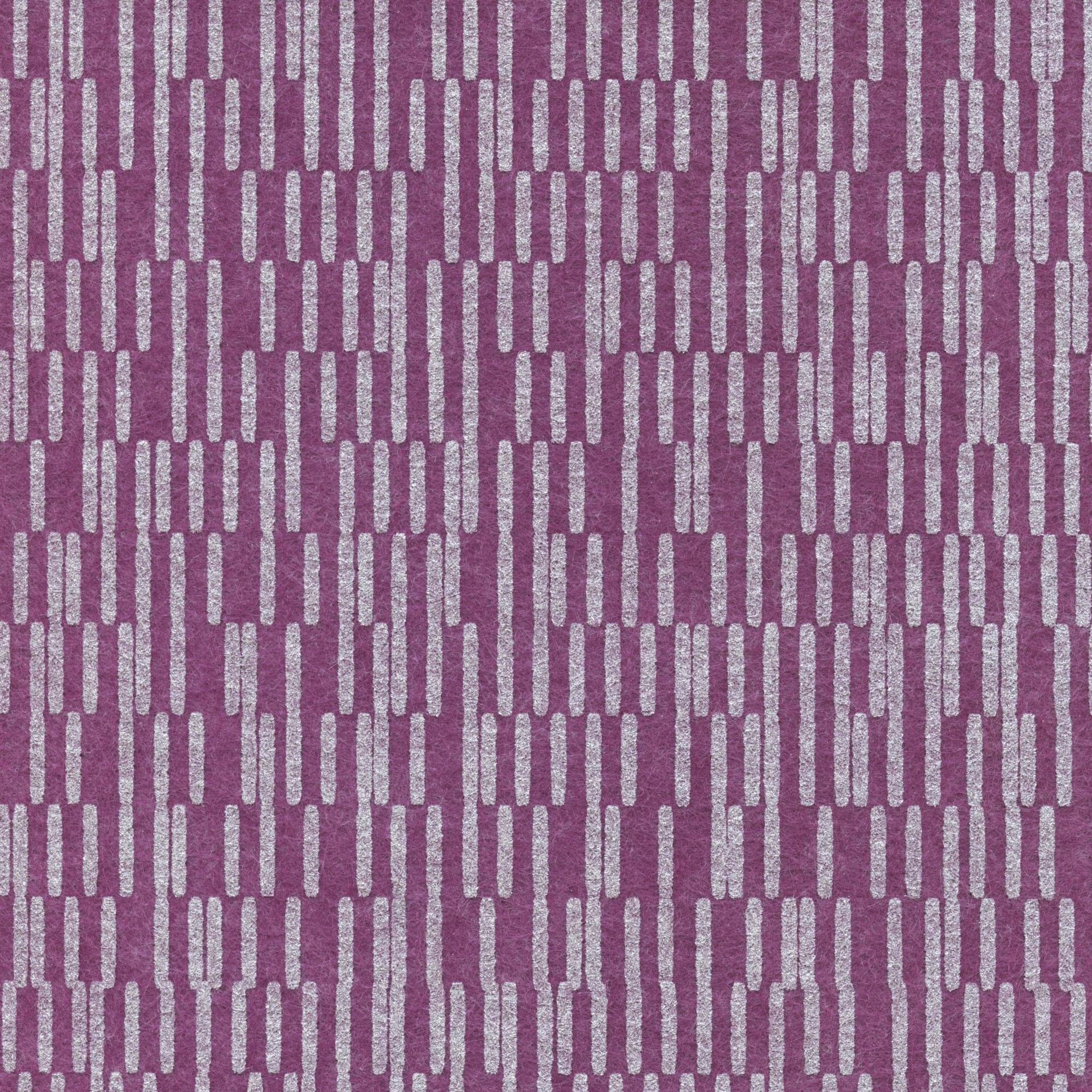

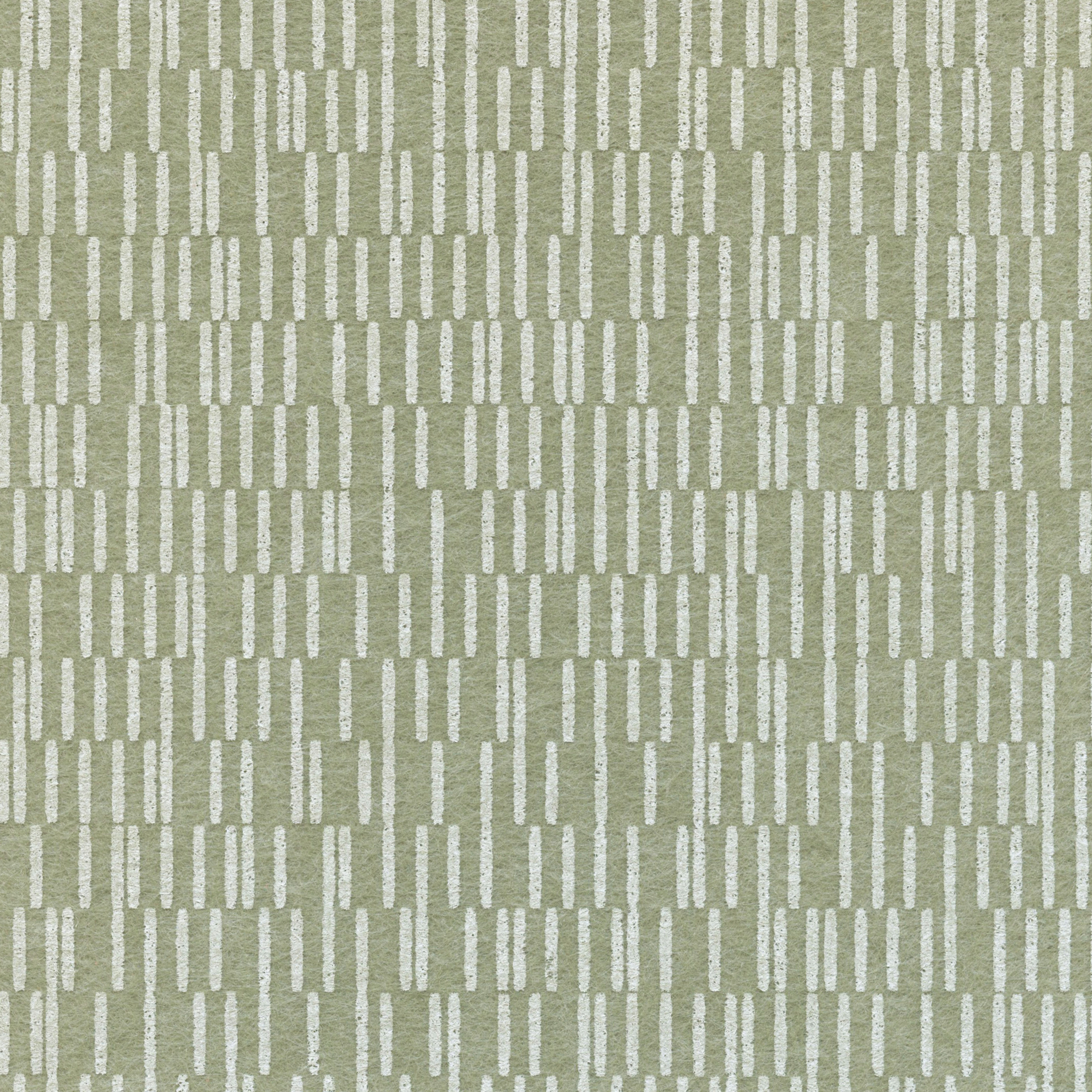

Colourways
503
907
402
100
580
444
544
545
274
487
294
576
124
167
349
384
621
633
660
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)
Pattern Repeat:
Horizontal: 300mm, Vertical: 327mm
Composition:
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
Sound Absorption Test Method:
AS ISO 11654: 2002 (2016)
AS ISO 354: 2006 (R2016)
ASTM C423 - 17
Weighted Alpha Coefficient (αw):
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75
Noise Reduction Coefficient (NRC):
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class:
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
