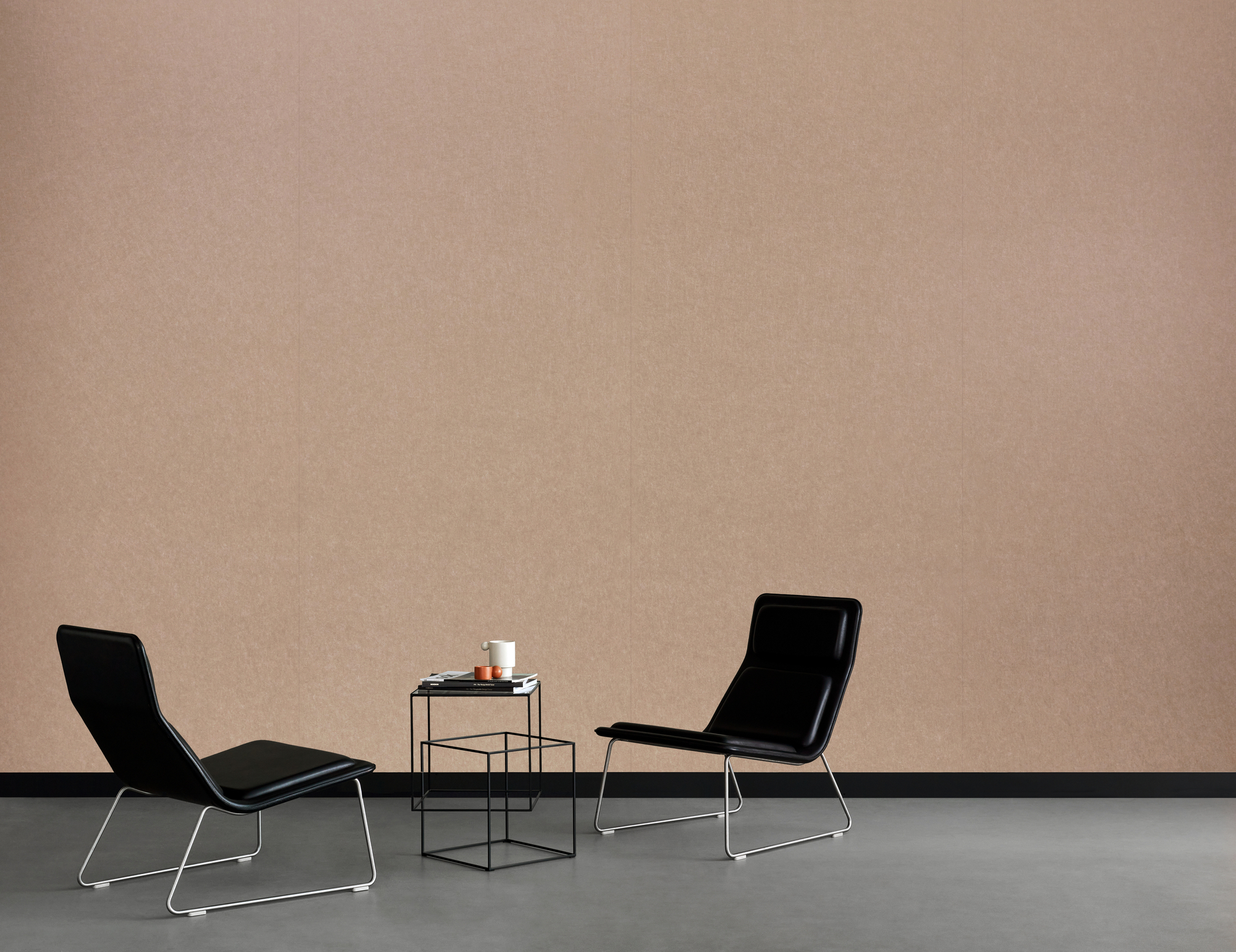

EchoPanel® 12mm
Invented and launched by Woven Image in 2004, EchoPanel® 12mm is the original patent-protected acoustic panel with a decorative finish and unrivalled sustainability credentials.
EchoPanel® is pinnable, lightweight, printable, easy to cut and install, making it ideal for multiple acoustic applications including walls, ceilings and partitions. Known for its industry leading colour palette, EchoPanel®'s colour remains consistent throughout the depth of the panel allowing it to be installed without frames or edging. Made using 60% - 80% post-consumer recycled PET plastic bottles, EchoPanel® is a superior upcycled product with a 10-year life expectancy, after which the material is 100% recyclable. EchoPanel® achieves numerous environmental certifications that are recognised by International Green Building Tools including WELL™, LEED®, GreenStar® and BREEAM®.
Colourways
500
454
908
468
721
402
580
101
487
495
484
193
269
447
444
442
274
106
124
295
167
573
338
330
551
633
381
579
384
349
542
550
660
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)
Composition:
100% PET (60%-80% post-consumer recycled)*
Fire Test Result:
AS 1530.3
BS EN 13501.1: Classification B - s1, d0
ISO 9705: Group 1
BS EN 45545-2 + A1 Annex C: CIT: 0.05
ASTM E84 Unadhered: Class 1 or A
GB 8624 B1
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17
Weighted Alpha Coefficient (αw):
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75
Noise Reduction Coefficient (NRC):
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class:
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
Sustainability
Carbon Neutral
Climate Active is a government-backed voluntary initiative providing a rigorous, transparent and science-based way to measure, reduce and offset carbon emissions.
Environmental Product Declaration
An independently verified and registered document, communicating quantifiable and comparable environmental impact data on the life cycle of a product.
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Global GreenTag™ Product Health Declaration (PHD) - Platinum HealthRATE
A certification tool recognising full ingredient transparency, compliant with core WELL™ Features and LEED® Product Disclosure credits, that proves products are safe for human health.
Declare
A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.
Red List Free
Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
