EchoPanel® Kookaburra
Kookaburra is a richly coloured, botanically inspired and texturally layered printed acoustic panel derived from an original painting by Ben Goss.

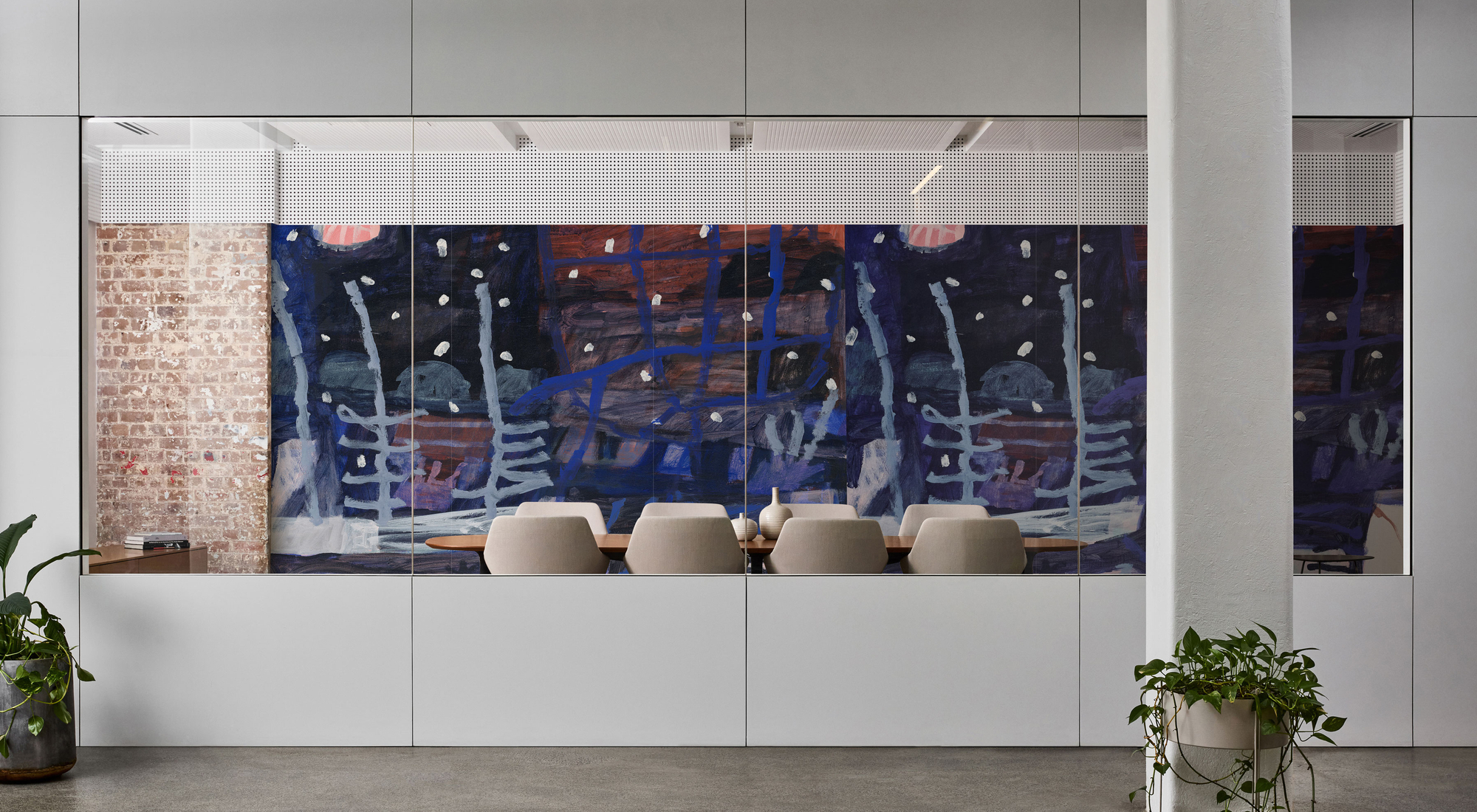

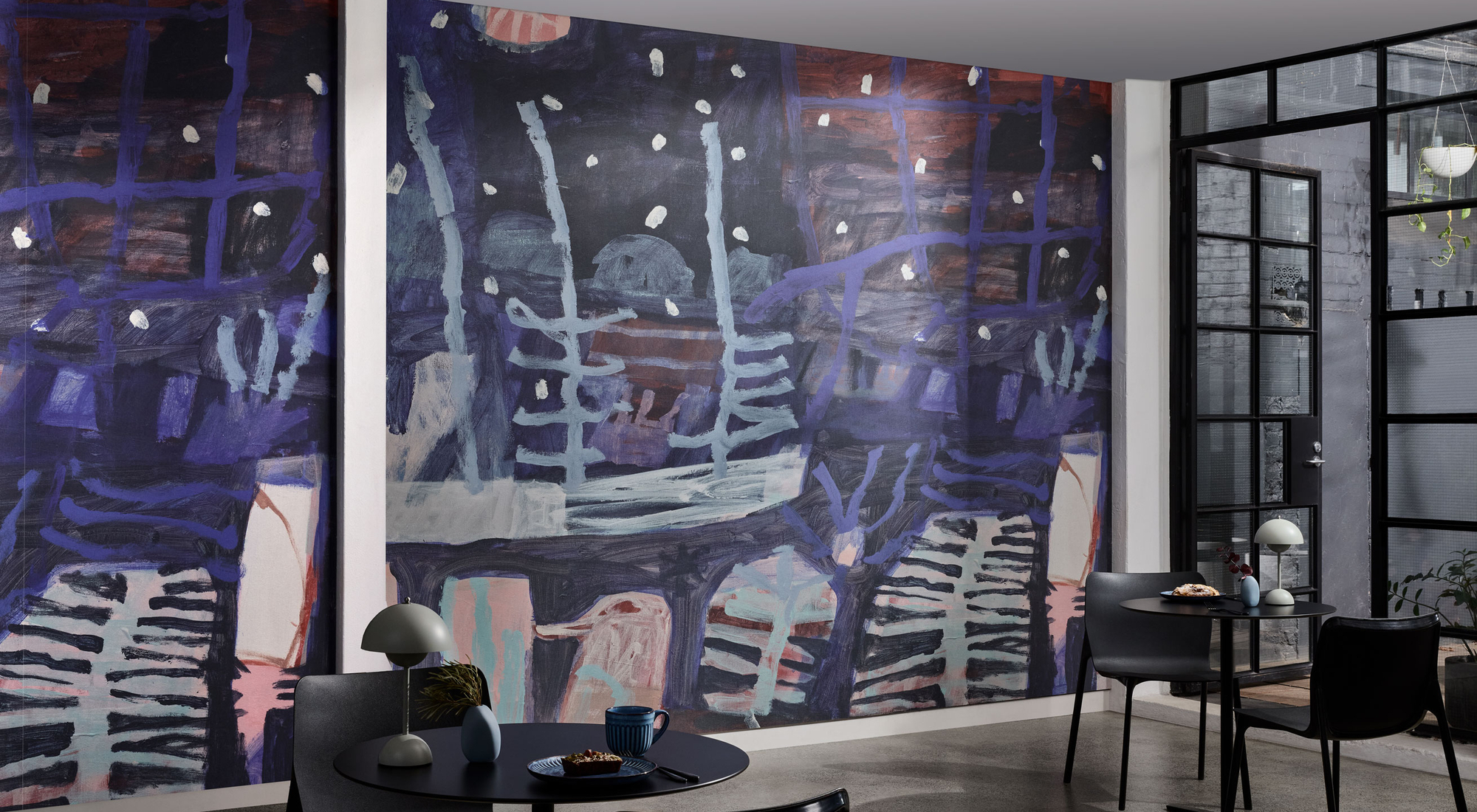

The painting has been scanned and digitally printed onto the original recycled PET acoustic panel, EchoPanel® 12mm, capturing the nuance of the artwork. Brushwork, canvas texture, pigment build-up and pauses between gestures remain visible. The mural design continuously spans three panels to create a bold, immersive visual presence that makes spaces feel considered and quietly alive.
Colourways
1
2
3
Product Specifications
Designer:
Woven Image x Ben Goss
Dimensions:
Length: 2780mm (+/-2mm) Width: 1180mm (+/-2mm) Thickness: 12mm (+/-7%)
Composition:
100% PET (80% post-consumer recycled)
Fire Test Result:
ISO 9705: Group 1
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
Weighted Alpha Coefficient (αw):
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.43, 20mm air gap: 0.60, 50mm air gap: 0.75
Noise Reduction Coefficient (NRC):
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class:
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
For samples, reach out to your local Woven Image representative.
