EchoPanel® Adapt Classic

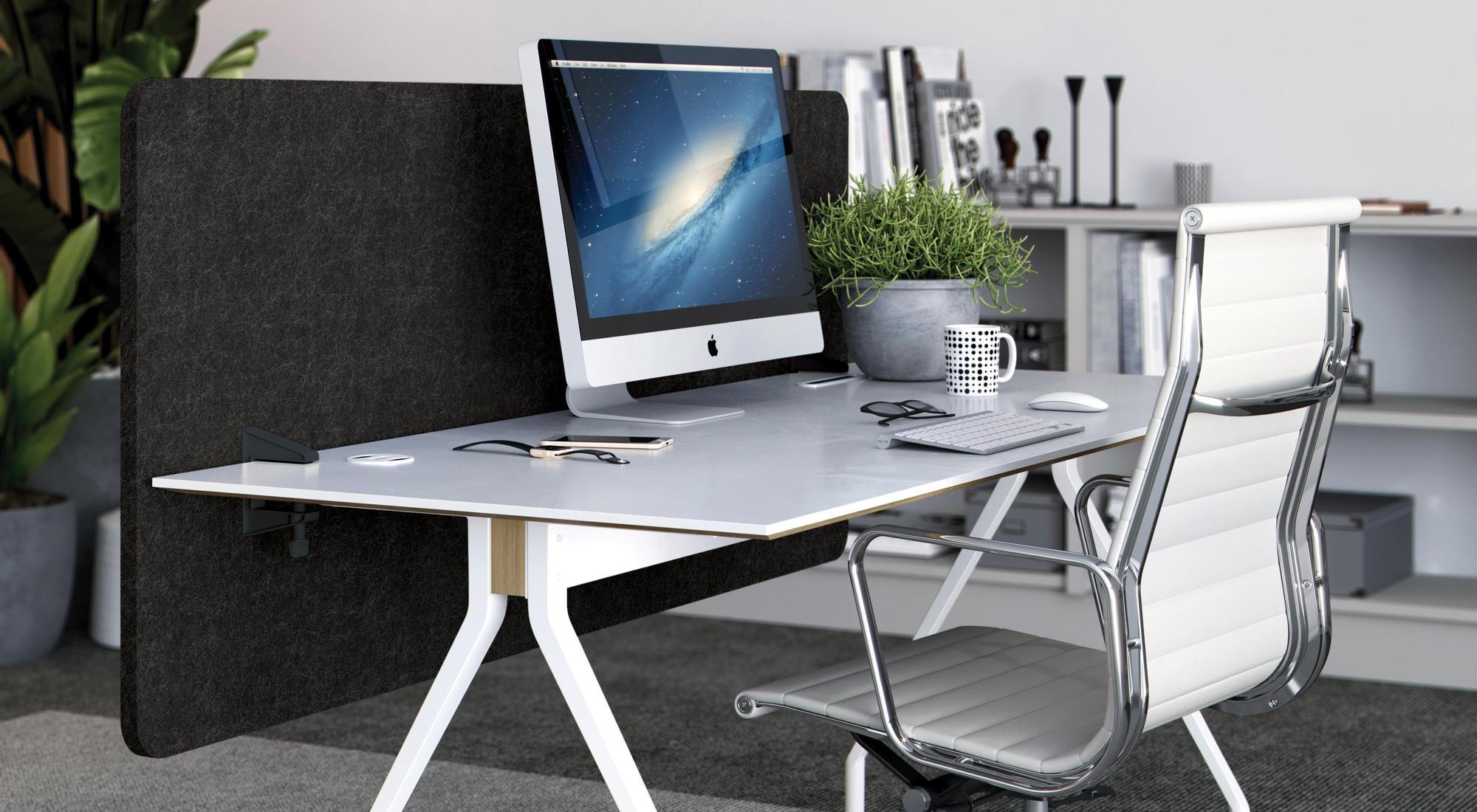

At 1790mm long and 780mm deep, Adapt Classic desk screens are designed to fit the majority of commercial workstations.
Screens attach to various desk thicknesses using unique clamps, and can easily be switched from one desk to another. Made using 24mm EchoPanel®, the screens are pinnable, don't require any framing or edging and assist with sound absorption in the workplace. EchoPanel® is made using 60% post-consumer recycled plastic bottles, has a 10-year life expectancy, after which time the material is 100% recyclable.
Colourways
454
442
542
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 1790mm (+/- 2mm), Width: 780mm (+/- 2mm), Thickness: 24mm (+/-7%)
Composition:
100% PET (60% post-consumer recycled)
Fire Test Result:
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
ASTM E84 Unadhered: Class 1 or A
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
Weighted Alpha Coefficient (αw):
EchoPanel® 24mm achieves: Direct fix: 0.45 (MH), 20mm air gap: 0.50 (MH), 50mm air gap: 0.70 (MH)
Sound Absorption Average (SAA):
EchoPanel® 24mm achieves:
Direct fix: 0.63
Noise Reduction Coefficient (NRC):
EchoPanel® 24mm achieves:
Direct fix: 0.65, 20mm air gap: 0.75, 50mm air gap: 0.85
Sound Absorption Class:
D (Direct fix)
Additional Acoustic Information:
Sound Absorption Class result is based on EchoPanel® 24mm. MH = Mid to High Frequency
Sustainability
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
