Array 24mm

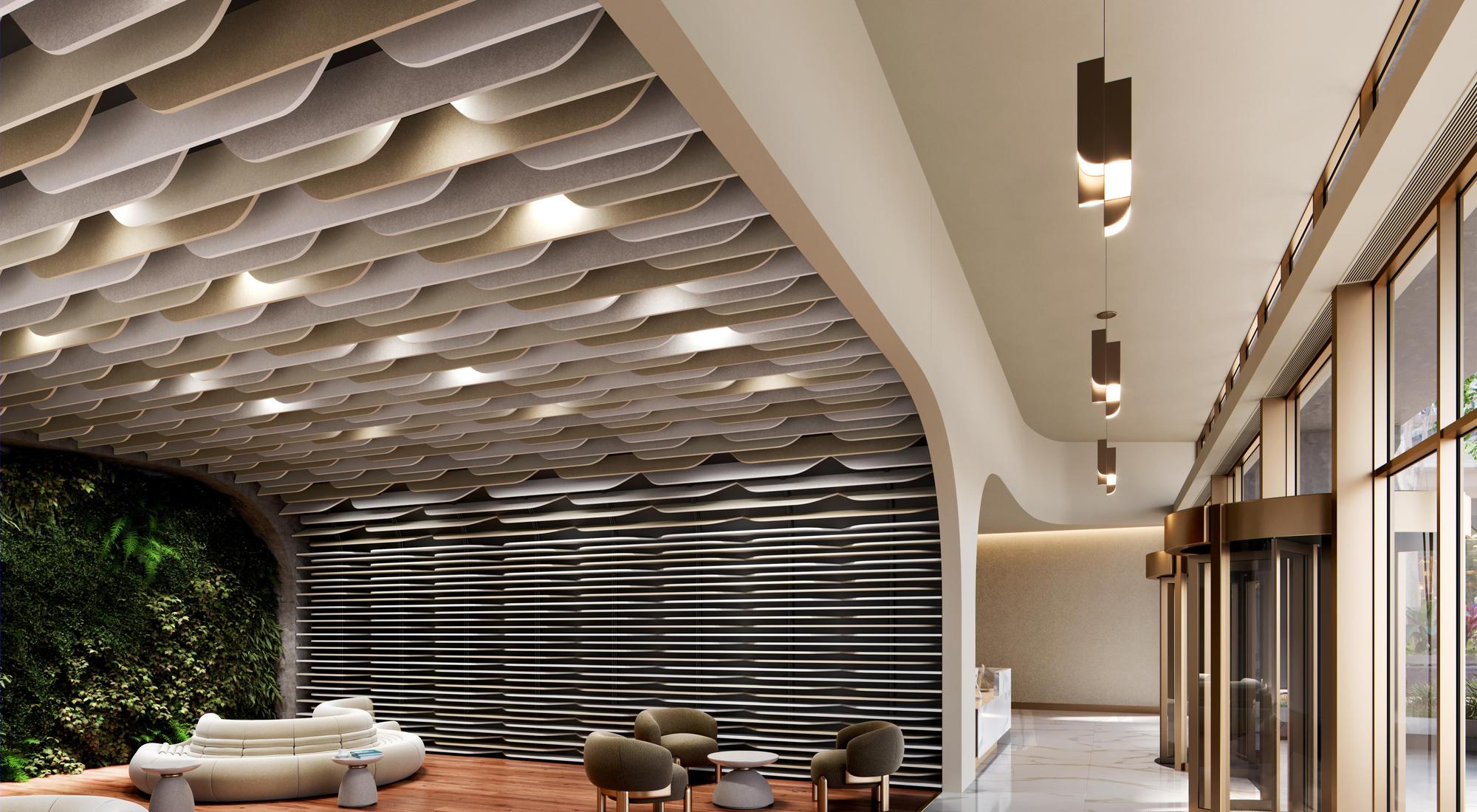

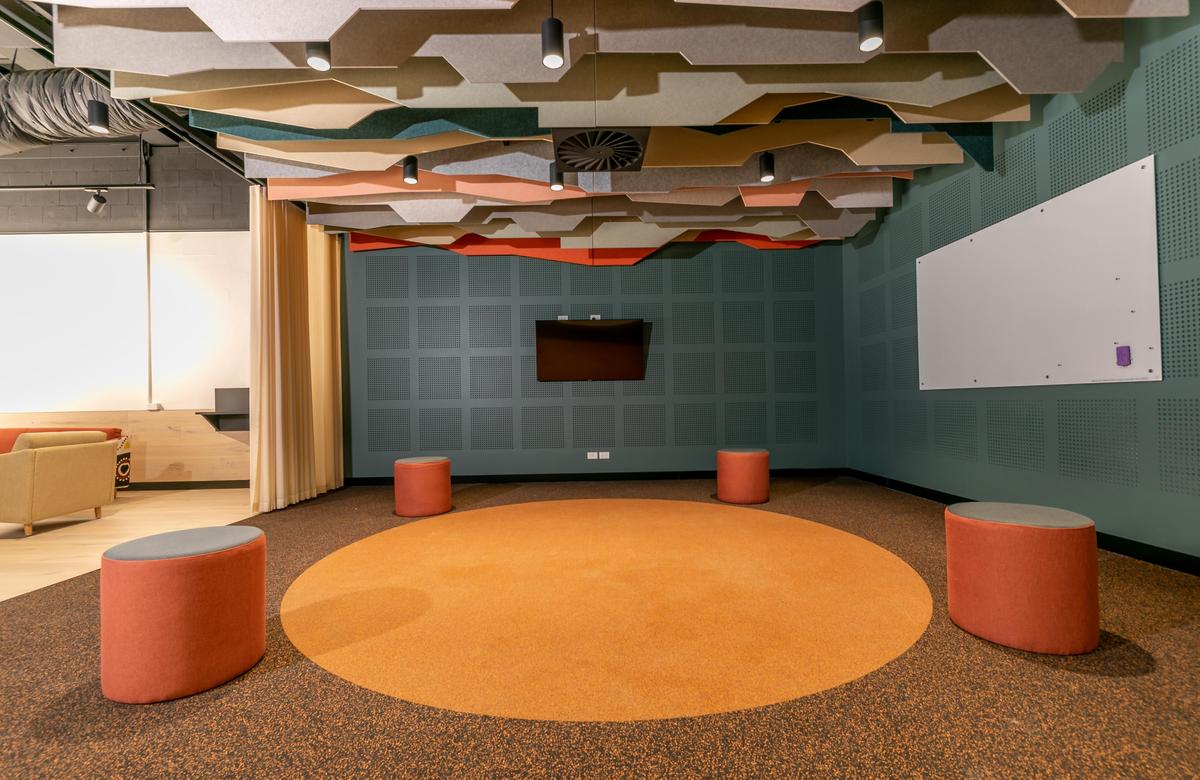

Array is a customisable ceiling baffle system that utilises EchoPanel® in both 12mm and 24mm thicknesses.
It helps to control reverberated noise in busy public spaces including workplace, education and hospitality environments. Choose from our in-house baffle designs, shown below in the 24mm EchoPanel® colour palette, or work with us to create your own unique installation. Featuring streamlined aluminium hardware, Array has been engineered for easy installation and requires up to 60% less extrusion compared to other acoustic baffle systems.
Colourways
500
454
908
101
442
468
402
269
487
633
325
550
542
384
330
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2400mm (+/- 5mm), Depth: 297mm (+/- 5mm), Thickness: 24mm (+/- 7%)
Composition:
EchoPanel Baffles 100% PET (60% post-consumer recycled)
Fire Test Result:
ASTM E84 Unadhered: Class 2 or B
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
Sound Absorption Test Method:
AS ISO 11654: 2002 (2016)
AS ISO 354: 2006 (R2016)
ASTM C423 - 17
Equivalent Absorption Area (Aeq) in m² Sabins:
Direct fix: 125Hz = 0.15m², 250Hz = 0.44m², 500Hz = 0.46m², 1000Hz = 0.70m², 2000Hz = 0.85m², and 4000Hz = 0.83m²
Weighted Alpha Coefficient (αw):
Direct fix: 0.75(MH)
Sound Absorption Average (SAA):
Direct fix: 0.83
Noise Reduction Coefficient (NRC):
Direct fix: 0.85
Sound Absorption Class:
C (Direct fix)
Additional Acoustic Information:
Baffles tested were 2400mm x 300mm x 24mm, at 300mm spacing/centres. MH = Mid to High Frequency
Sustainability
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Downloads
- Fire Test Certificate ISO 9705_EchoPanel 7mm_12mm_24mm.pdf
- Fire Test Report ASTM E84_EchoPanel 24mm.pdf
- Fire Test Report BS EN 13501.1_EchoPanel 24mm.pdf
- Fire Test Report ISO 9705_EchoPanel 7mm_12mm_24mm.pdf
- Fire Test Technical Opinion ISO 9705_EchoPanel 7mm_12mm_24mm.pdf
- Formaldehyde Test Report_EchoPanel 7mm_12mm_24mm.pdf
- Material Take-back Program Return Form.pdf
- Sound Absoprtion_Direct Fix_Array 24mm.pdf
- Sound Absorption Test Report_m2sabin_Direct Fix_Array 24mm.pdf
- VOC Emission Test Certificate_EchoPanel 7mm_12mm_24mm_Mura.pdf
