EchoPanel® Kaleidoscope

Order Sample
EchoPanel Kaleidoscope acoustic panel 294 and 545 Hero.jpg
EchoPanel Kaleidoscope 544 Hero.jpg

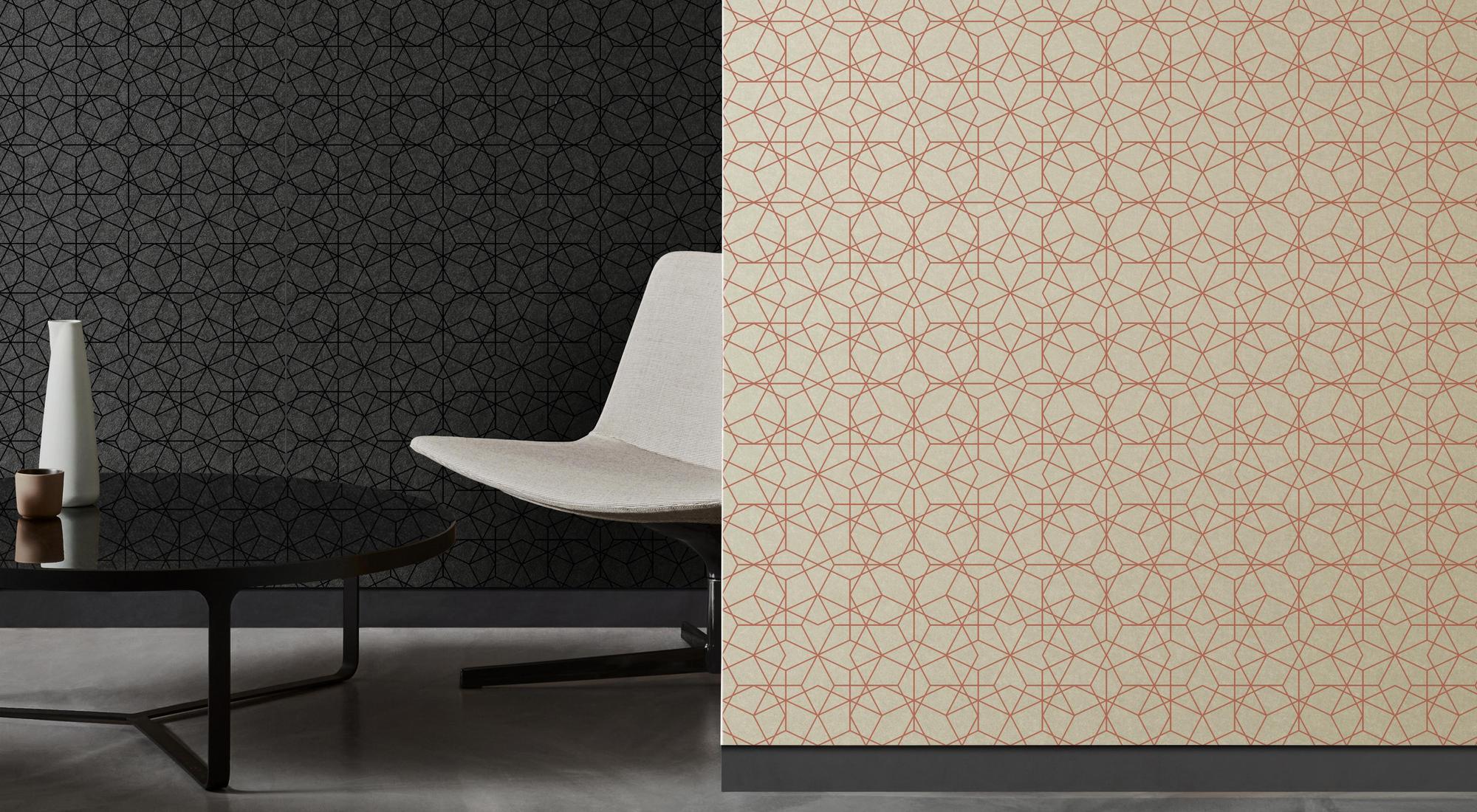

Kaleidoscope is a digitally printed acoustic panel made from 60% recyled PET plastic. The angular crystalline design is achieved through intersecting lineal shapes.

These panels are ideal for feature wall applications in a variety of commercial spaces, and come in a range of stunning colourways that can be printed single or double-sided.

Colourways

Kaleidoscope 503 Calcite

503

Kaleidoscope 907 Sandstone

907

Kaleidoscope 402 Pebble

402

Kaleidoscope 100 Ice

100

Kaleidoscope 580 Sage

580

Kaleidoscope 444 Smoke

444

Kaleidoscope 544 Starlight

544

Kaleidoscope 545 Steel

545

Kaleidoscope 274 Orchid

274

Kaleidoscope 487 Blush

487

Kaleidoscope 294 Ruby

294

Kaleidoscope 576 Magenta

576

Kaleidoscope 124 Ochre

124

Kaleidoscope 167 Cinnamon

167

Kaleidoscope 349 Vineyard

349

Kaleidoscope 384 Olive

384

Kaleidoscope 621 Foam

621

Kaleidoscope 633 Pacific

633

Kaleidoscope 660 Coronet

660

Kaleidoscope 365 Navy

365

Download Colourways

Order Sample

Product Specifications

Designer:

Woven Image (Amy Saunders)

Dimensions:

Length: 2800mm (+/-2mm) Width: 1200mm (+/-2mm) Thickness: 12mm (+/-7%)

Pattern Repeat:

Horizontal: 590mm, Vertical: 556mm

Composition:

100% PET (60% post-consumer recycled)

Fire Test Result:

AS 1530.3
ISO 9705: Group 1
GB 8624 B1
BS EN 13501.1: Classification B - s1, d0

Sound Absorption Test Method:

AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17

Weighted Alpha Coefficient (αw):

Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

Direct fix: 0.43, 20mm air gap: 0.60, 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75

Sound Absorption Class:

D (Direct fix)
D (20mm air gap)
C (50mm air gap)

Download Technical Reports Download Specification
