EchoPanel® Trio

EchoPanel Trio 576 Hero.jpg

EchoPanel Trio 365 Hero.jpg

EchoPanel® Trio is a printed design on EchoPanel® 12mm acoustic panel.

The design is made up of a series of repeated and rotated triangles to form an angular motif across the panel. Suitable for a range of wall and partitioning applications. The colourways are a balance of muted tones and striking colourways, with the capacity for printing on both sides.

Colourways

Trio 503 Calcite

503

Trio 907 Sandstone

907

Trio 402 Pebble

402

100

580

444

Trio 544 Starlight

544

545

Trio 274 Orchid

274

487

294

Trio 576 Magenta

576

124

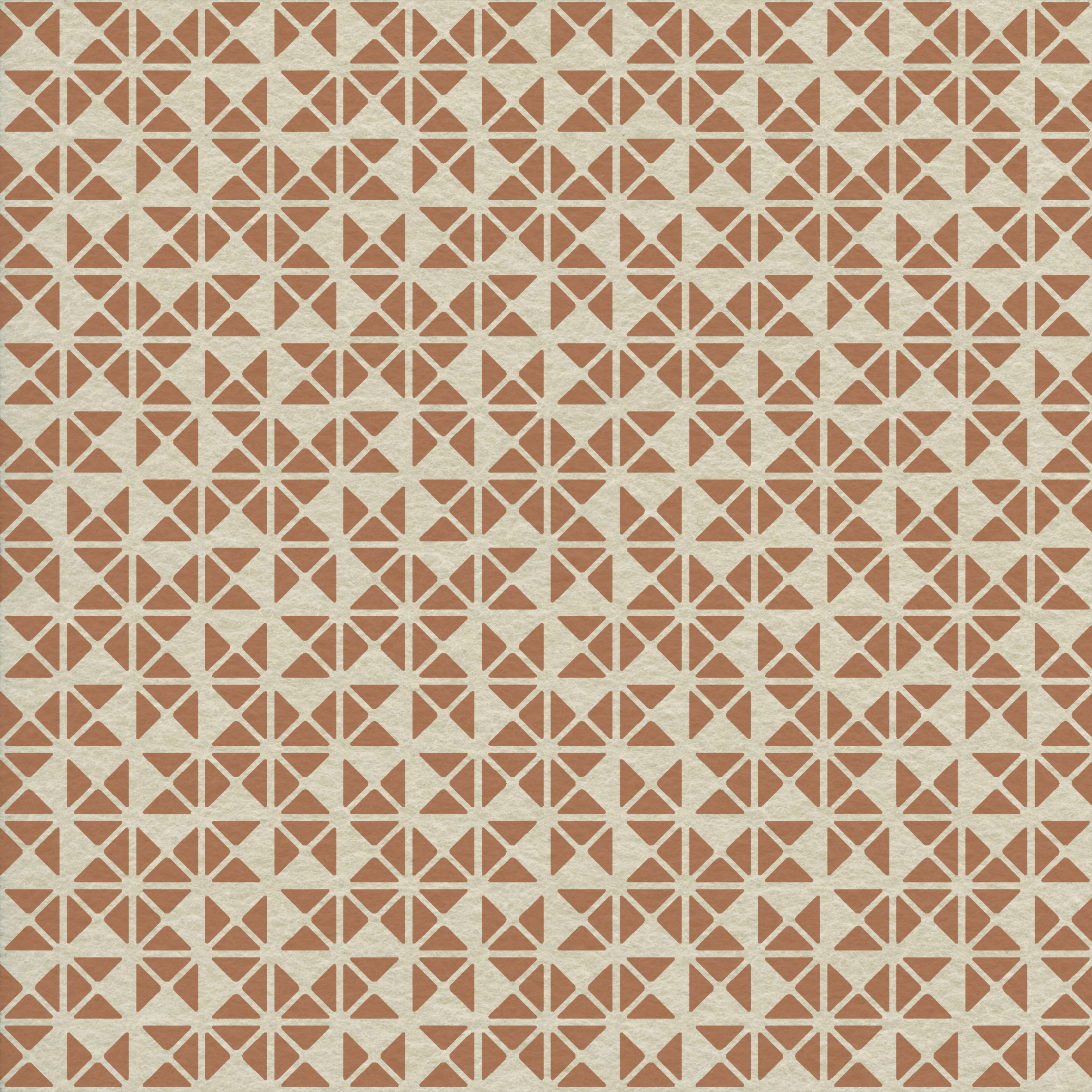

Trio 167 Cinnamon

167

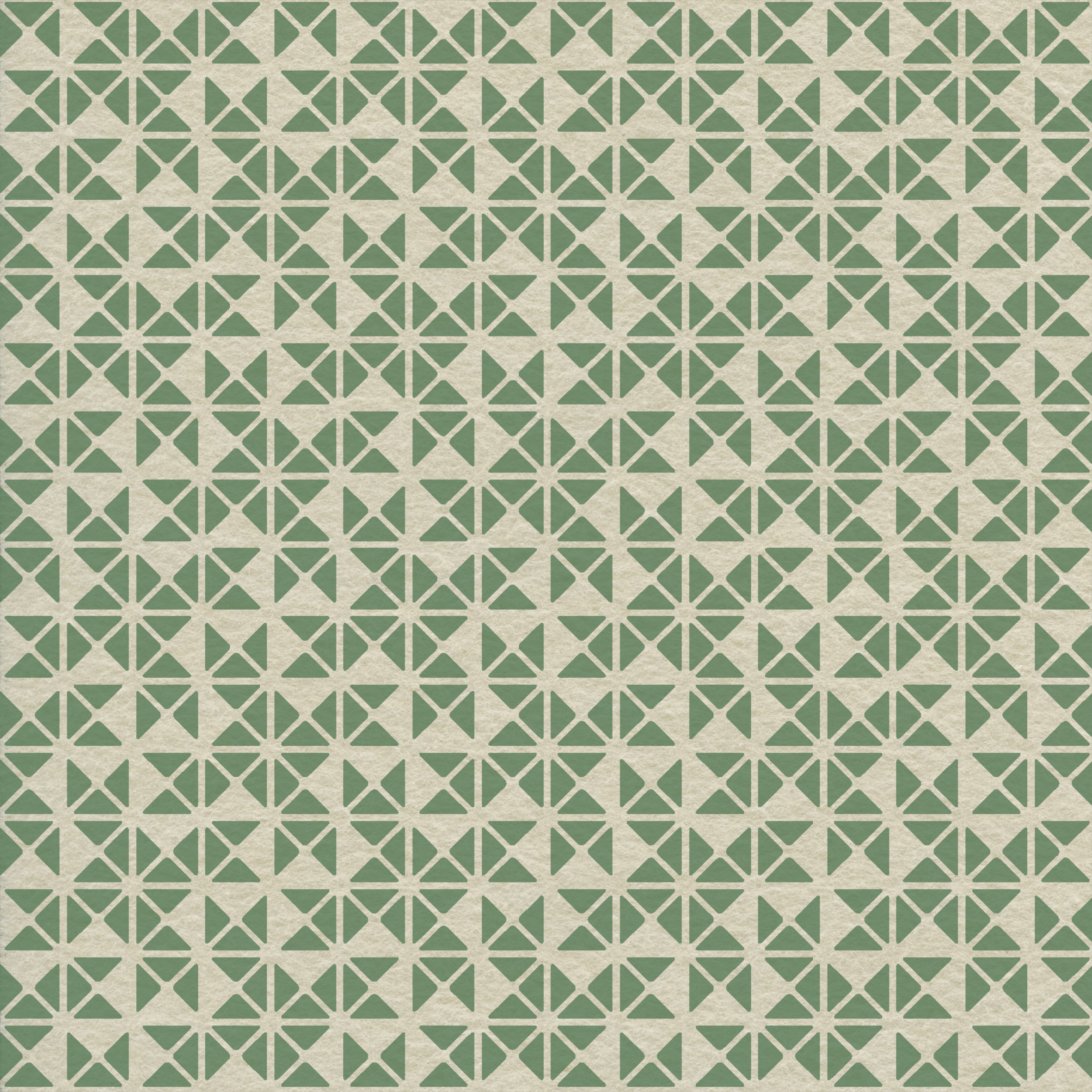

Trio 349 Vineyard

349

384

621

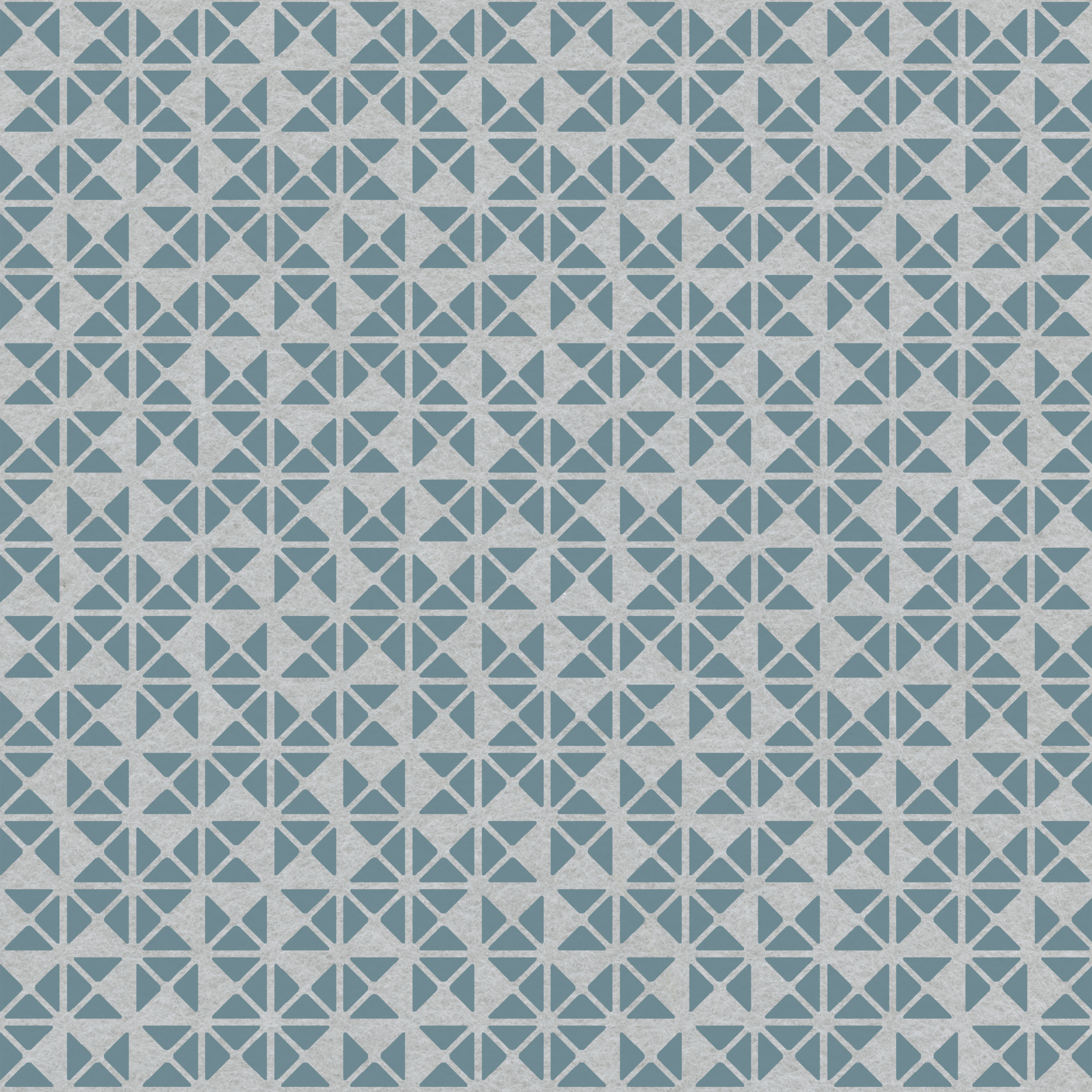

Trio 633 Pacific

633

Trio 660 Coronet

660

365

Download Colourways

Product Specifications

Designer:

Woven Image

Dimensions:

Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)

Pattern Repeat:

Horizontal: 63mm, Vertical: 63mm

Composition:

100% PET (60% post-consumer recycled)

Fire Test Result:

AS 1530.3
BS EN 13501.1: Classification B - s1, d0
ISO 9705: Group 1
GB 8624 B1

Sound Absorption Test Method:

AS ISO 11654: 2002 (2016)
AS ISO 354: 2006 (R2016)
ASTM C423 - 17

Weighted Alpha Coefficient (αw):

Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75

Sound Absorption Class:

D (Direct fix)
D (20mm air gap)
C (50mm air gap)

Download Technical Reports Download Specification
