EchoPanel® Palace

EchoPanel Palace Acoustic Panels hero image 2.jpg

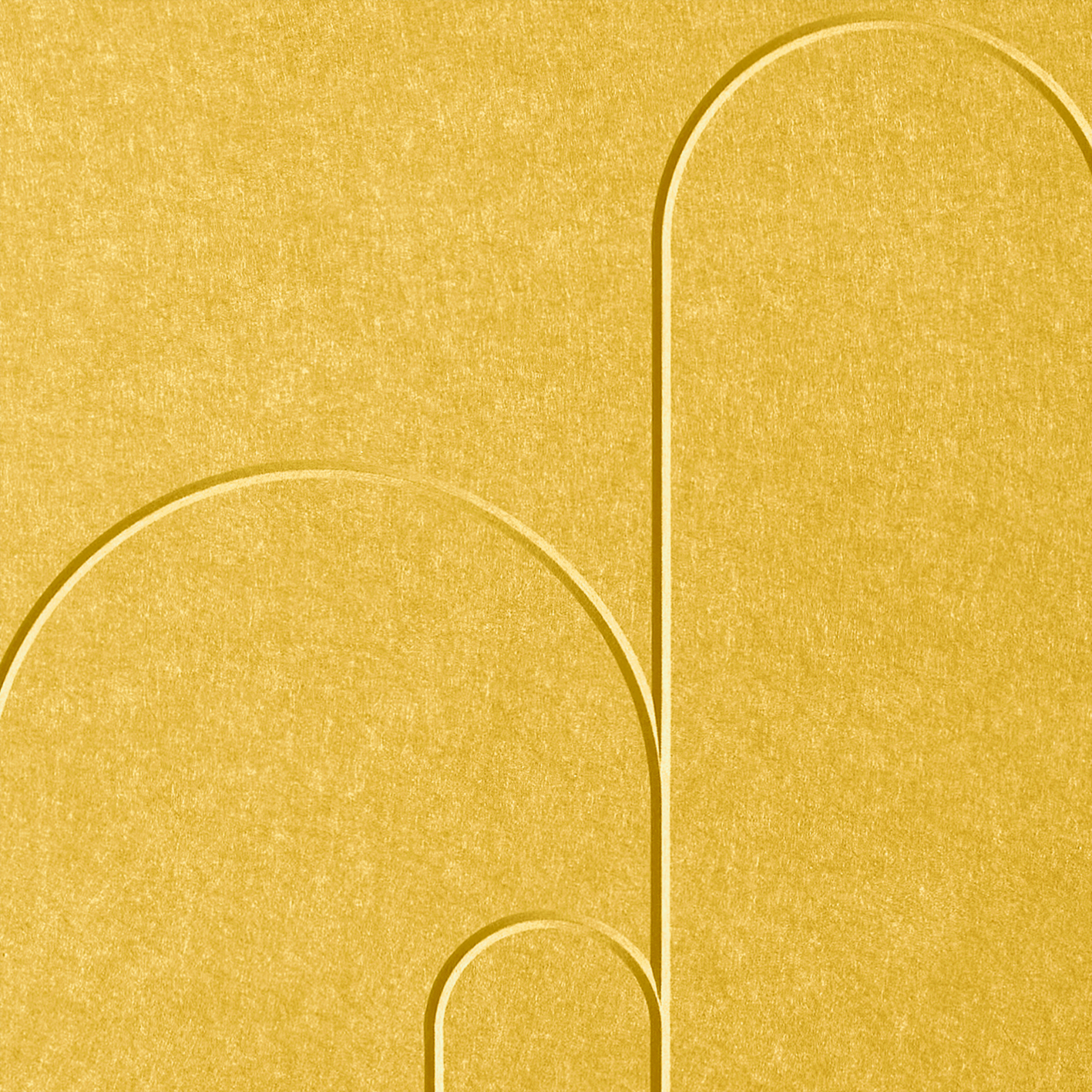

EchoPanel® Palace presents gentle linework on acoustic walls that induce serenity through arcs and archways of architecture and art deco motifs.

Each precision cut acoustic panel has a chamfered edge ideal for panel-to-panel wall applications. EchoPanel® is Global GreenTag™ certified with a Platinum Product Health Declaration, low Volatile Organic Compounds (VOC), Red-List free, and has published ingredient transparency through Declare.

Colourways

500

101

908

468

721

402

580

444

487

495

484

193

269

447

542

550

274

106

124

295

167

573

338

330

551

633

381

579

349

384

660

365

Download Colourways

Order Sample

Product Specifications

Designer:

Woven Image

Dimensions:

Length: 2750mm (+/-2mm) Width: 1100mm (+/-2mm) Thickness: 12mm (+/-7%)

Composition:

100% PET (60% post-consumer recycled)

Fire Test Result:

AS 1530.3
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
ASTM E84 Unadhered: Class 1 or A

Sound Absorption Test Method:

AS ISO 354: 2006 (R2016)
ASTM C423 - 17
AS ISO 11654: 2002 (2016)

Weighted Alpha Coefficient (αw):

Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75

Sound Absorption Class:

D (Direct fix)
D (20mm air gap)
C (50mm air gap)

Download Technical Reports Download Specification

Sustainability

Carbon Neutral

Climate Active is a government-backed voluntary initiative providing a rigorous, transparent and science-based way to measure, reduce and offset carbon emissions.

Environmental Product Declaration

An independently verified and registered document, communicating quantifiable and comparable environmental impact data on the life cycle of a product.

Global GreenTag™ GreenRATE Level A

A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.

Global GreenTag™ Product Health Declaration (PHD) - Platinum HealthRATE

A certification tool recognising full ingredient transparency, compliant with core WELL™ Features and LEED® Product Disclosure credits, that proves products are safe for human health.

Declare

A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.

Red List Free

Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.

Low VOC Emissions

Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
