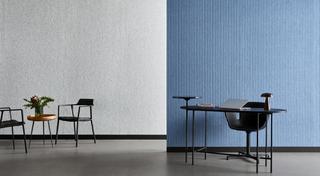

Pico Embossed Panel
Influenced by the strong architectural trend for vertical linework, Pico’s smaller scale design is the perfect addition to our multi award-winning embossed acoustic panel collection.
Pico is manufactured using 51% recycled PET content and renewable energy to achieve its beautiful tactile surface. Available in an extensive colour palette, Pico delivers a stunning aesthetic whilst improving acoustic comfort in commercial spaces.
Colourways
454
908
101
501
468
580
402
447
269
274
487
167
124
349
384
550
330
660
551
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2800mm (+/-3 mm), Width: 1130mm (+/- 3mm), Thickness: 9mm (+/- 7%)
Composition:
100% PET (51% recycled)
Fire Test Result:
ASTM E84 Unadhered: Class 1 or A
BS EN 13501.1: Classification B - s1, d0
ISO 9705: Group 1
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17
Weighted Alpha Coefficient (αw):
Direct fix: 0.20 (H), 20mm air gap: 0.35 (MH), 50mm air gap: 0.60 (MH). Achieves an aw of 0.75 with a 18mm acoustic backing
Noise Reduction Coefficient (NRC):
Direct fix: 0.30, 20mm air gap: 0.50, 50mm air gap: 0.70.
Achieves an NRC of 0.75 with a 18mm acoustic backing
Sound Absorption Class:
E (Direct fix)
D (20mm air gap)
C (50mm air gap)
Sustainability
Declare
A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.
Red List Free
Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Installation
Our Embossed Panel Series can be installed on walls and ceilings. At 2.8m high, they can be applied to walls without a floor-to-ceiling join line. Designs pattern-match side to side and top to bottom, making them suitable for continuous wall and double height installations.
Refer to our Installation Guide and Video for detailed instructions or contact us for recommended installers.
