Gem Embossed Panel

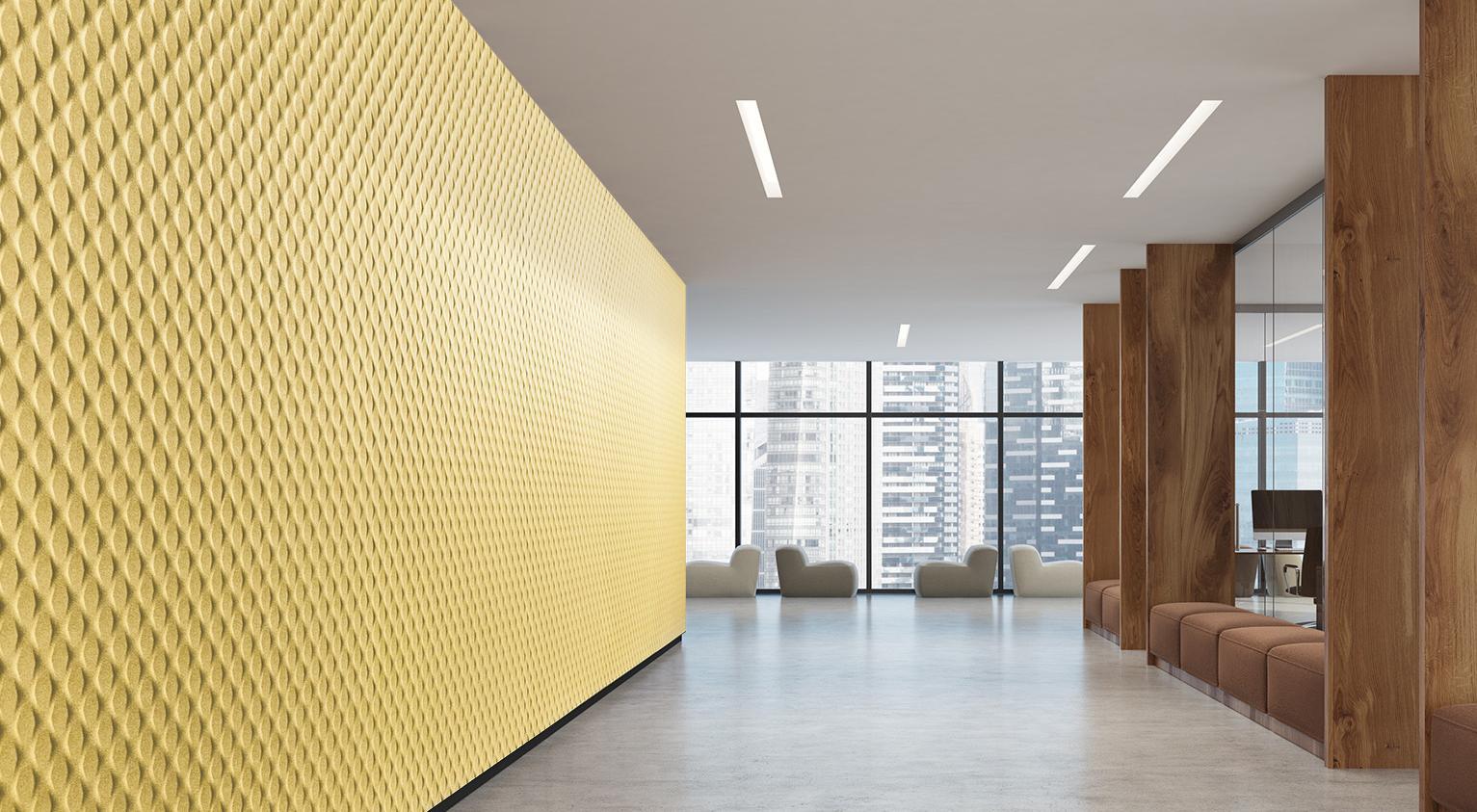

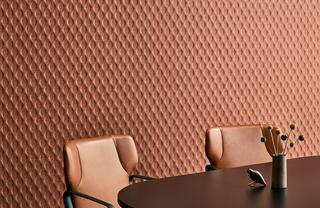

Gem's design is reminiscent of expanded mesh, with offset diamond-like shapes creating a lattice impression across the panel.
Reducing reverberated noise in shared spaces, these tactile acoustic panels are ideal for floor to ceiling applications, and pattern match for continuous wall and double-height installations. The embossed panel series is manufactured using at least 51% recycled content and utilising green energy. The collection is Global GreenTag™ certified, has published ingredient transparency through Declare and low VOC emissions.
Colourways
908
101
468
721
402
580
349
384
274
106
124
495
487
484
167
447
573
551
660
550
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2800mm (+/-3mm), Width: 1130mm (+/- 3mm), Thickness: 9mm (+/- 7%)
Composition:
100% PET (51% recycled)
Fire Test Result:
ASTM E84 Unadhered: Class 1 or A
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
ASTM C423 - 17
AS ISO 11654: 2002 (2016)
Weighted Alpha Coefficient (αw):
Direct fix: 0.20 (H), 20mm air gap: 0.35 (MH), 50mm air gap: 0.60 (MH). Achieves an aw of 0.75 with a 18mm acoustic backing
Noise Reduction Coefficient (NRC):
Direct fix: 0.30, 20mm air gap: 0.50, 50mm air gap: 0.70.
Achieves an NRC of 0.75 with a 18mm acoustic backing
Sound Absorption Class:
E (Direct fix)
D (20mm air gap)
C (50mm air gap)
Sustainability
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Declare
A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.
Red List Free
Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Installation
Our Embossed Panel Series can be installed on walls and ceilings. At 2.8m high, they can be applied to walls without a floor-to-ceiling join line. Designs pattern-match side to side and top to bottom, making them suitable for continuous wall and double height installations.
Refer to our Installation Guide and Video for detailed instructions or contact us for recommended installers.
