EchoPanel® Latitude

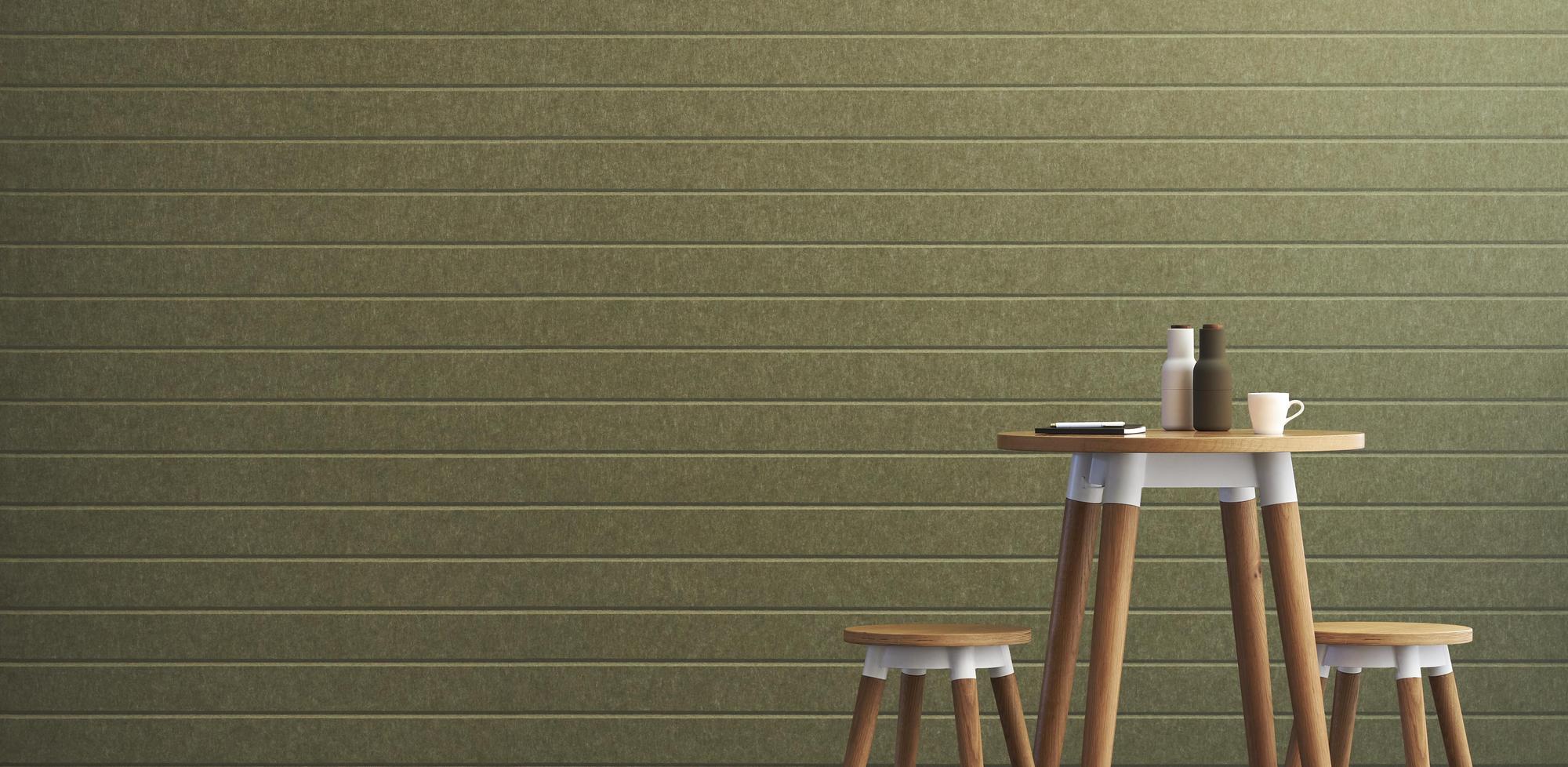

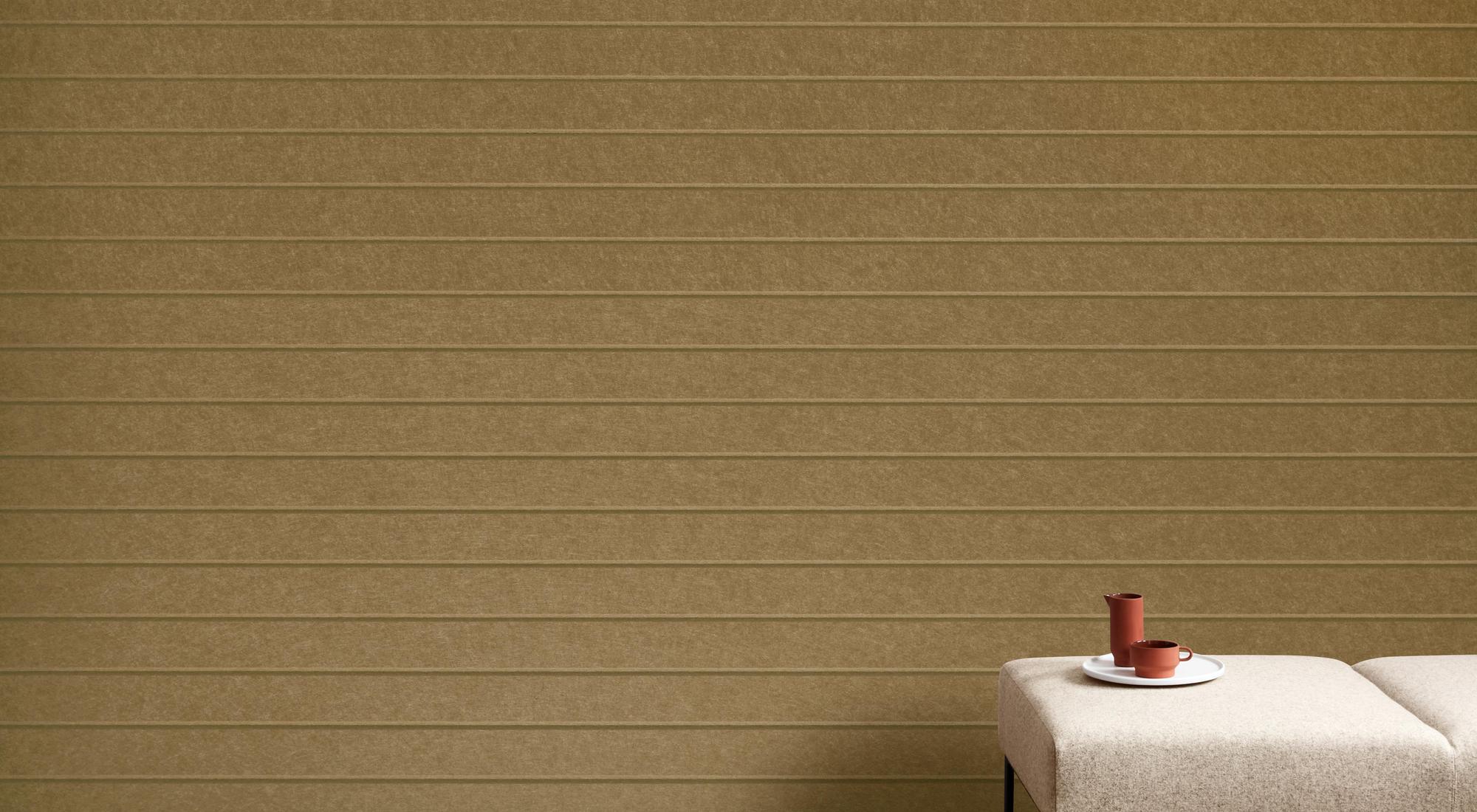

The v-groove detail of EchoPanel® Latitude accentuates the uniquely consistent texture and colour of EchoPanel®, whilst adding a timeless three-dimensional feel resonant of horizontal wood panelling.
Featuring the same extensive colour range and acoustic attributes as EchoPanel® 12mm, Latitude is also Global GreenTag™ certified, Red-List free and has published ingredient transparency through Declare. For higher acoustic performance, EchoPanel® Latitude is also available in EchoPanel® 24mm.
Colourways
500
454
908
468
721
402
580
101
487
495
484
193
269
447
444
274
106
124
295
167
573
338
330
551
633
381
579
349
542
550
660
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2750mm (+/-2 mm), Width: 1100mm (+/- 2mm), Thickness: 12mm (+/- 7%). Also available in 24mm (+/-7%), specifications will differ.
Composition:
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
ASTM E84 Unadhered: Class 1 or A
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
Weighted Alpha Coefficient (αw):
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75
Noise Reduction Coefficient (NRC):
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class:
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
Sustainability
Carbon Neutral
Climate Active is a government-backed voluntary initiative providing a rigorous, transparent and science-based way to measure, reduce and offset carbon emissions.
Environmental Product Declaration
An independently verified and registered document, communicating quantifiable and comparable environmental impact data on the life cycle of a product.
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Global GreenTag™ Product Health Declaration (PHD) - Platinum HealthRATE
A certification tool recognising full ingredient transparency, compliant with core WELL™ Features and LEED® Product Disclosure credits, that proves products are safe for human health.
Declare
A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.
Red List Free
Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
