Nalu Embossed Panel
Meaning ‘Wave’ in Hawaiian, Nalu’s sculptural design captures the fluid motion of water smoothing over sand. Bold yet graceful, its embossed surface brings architectural elegance to wall and ceiling installations.
Made using a PET backing panel with a minimum of 50% recycled content and the coloured Mura surface finish, Nalu delivers both visual impact and acoustic comfort in commercial interiors. Sustainably manufactured with low VOCs and Global GreenTag™ certification.
Colourways
501
454
908
101
468
580
402
447

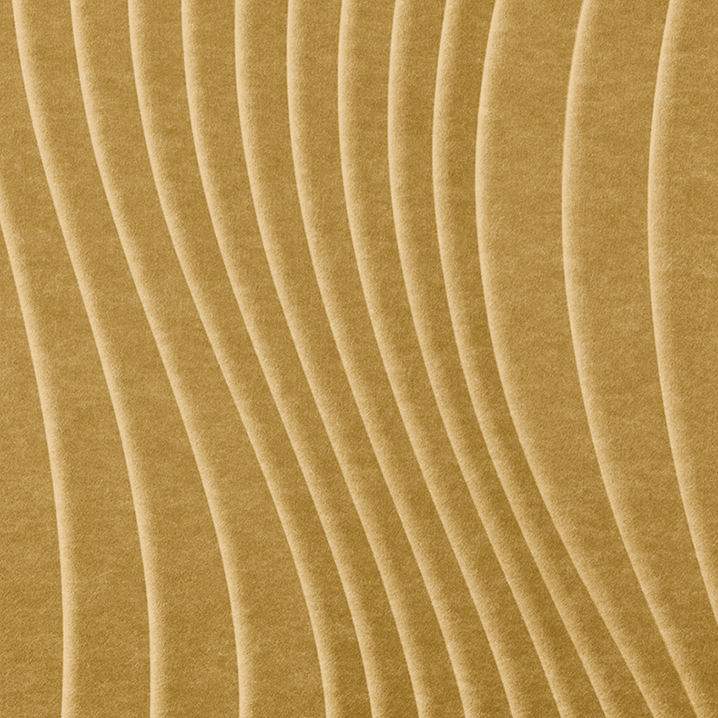

124
167
484
481
721
495
349
330
551
660

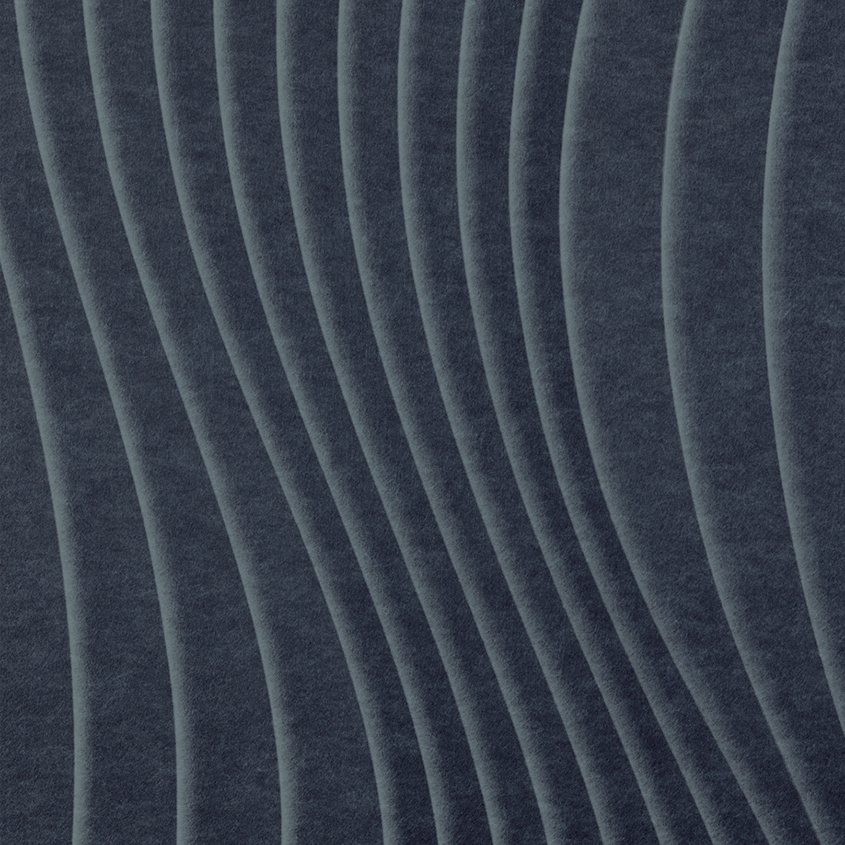

365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2800mm (+/-3 mm), Width: 1130mm (+/- 3mm), Thickness: 9mm (+/- 7%)
Composition:
98.5% PET (50% post-consumer recycled) & 1.5% PE
Fire Test Result:
AS ISO 9705 & AS 5637.1: Group 1. SMOGRArc <100 (m²/s²x1000)
C/VM2 - Verification Method - Group 1-S. Average smoke production rate (m²/s) <5
For further information contact designlink@csr.com.au
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
Weighted Alpha Coefficient (αw):
Direct fix: 0.25 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.39
Noise Reduction Coefficient (NRC):
Direct fix: 0.40
Sound Absorption Class:
E (Direct fix)
Sustainability
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Declare
A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.
Red List Free
Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Clean Air GOLD
An Intertek certification that verifies products meet strict low VOC emission requirements through independent testing. Clean Air-certified products support healthier indoor air quality and can contribute to achieving points in LEED® and WELL™ building rating systems.
