Groove 90 Tile
Groove 90 acoustic tiles feature a beautiful v-groove detail, cut at 90 degree angles.
These 550mm x 550mm tiles and can be installed horizontally or vertically, and in combination with Groove 45 tiles to create a unique design. Groove tiles are ideal for feature walls or pinboards applications, and pattern-match without the need for onsite trimming.
Colourways

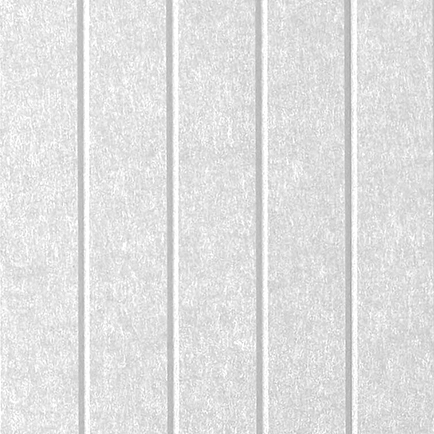

500
454

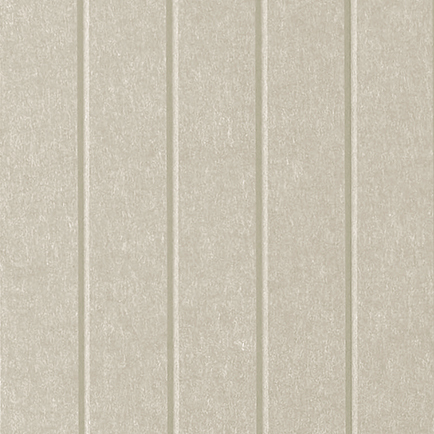

908
101
442
402
444

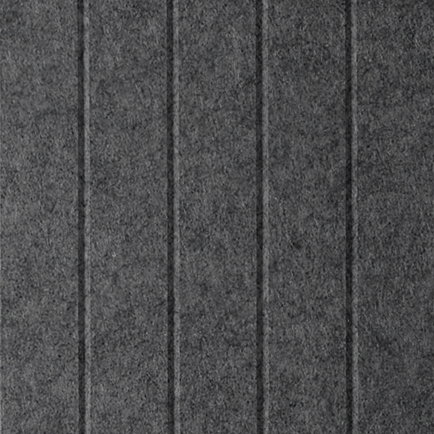

542
295
276
551

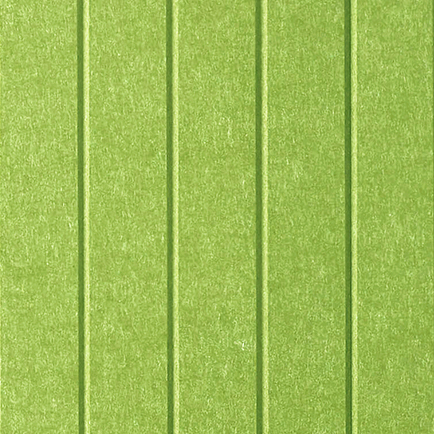

381
338

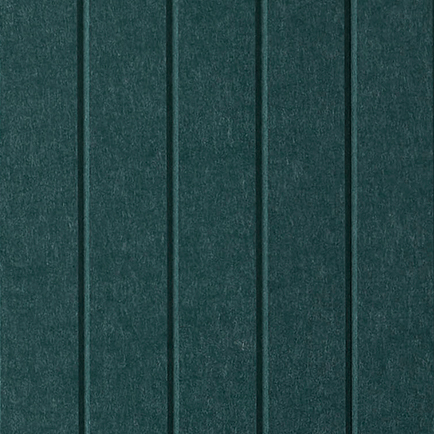

330
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 550mm (+/-2 mm), Width: 550mm (+/- 2mm), Thickness: 12mm (+/- 7%)
Composition:
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3
BS EN 13501.1: Classification B - s1, d0
GB 8624 B1
ISO 9705: Group 1
BS EN 45545-2 + A1 Annex C: CIT: 0.05
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
Weighted Alpha Coefficient (αw):
EchoPanel® 12mm achieves: Direct fix: 0.30 (MH)
Sound Absorption Average (SAA):
EchoPanel® 12mm achieves:
Direct fix: 0.43
Noise Reduction Coefficient (NRC):
EchoPanel® 12mm achieves:
Direct fix: 0.45
Sound Absorption Class:
D (Direct fix)
Additional Acoustic Information:
Sound Absorption Class result is based on EchoPanel® 12mm. MH = Mid to High Frequency
Sustainability
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Downloads
- Fire Test Certificate ISO 9705_EchoPanel 7mm_12mm_24mm.pdf
- Fire Test Report AS 1530.3_EchoPanel 12mm.pdf
- Fire Test Report BS EN 13501.1_EchoPanel 12mm.pdf
- Fire Test Technical Opinion ISO 9705_EchoPanel 7mm_12mm_24mm.pdf
- Material Safety Datasheet EchoPanel.pdf
- Sound Absorption Test Report_Direct fix_EchoPanel 12mm.pdf
- Sound Absorption_20mm air gap_EchoPanel 12mm.pdf
- Sound Absorption_50mm air gap_EchoPanel 12mm.pdf
- VOC Emission Test Certificate_Groove 45 Tile_Groove 90 Tile_Balance 670 Tile_Balance 1340 Tile.pdf
