Groove 45 Tile
Groove 45 is a 550mm x 550mm acoustic tiles that features a beautiful 45 degree precision cut v-detail.
Tiles can be installed uniformly, rotated to create a herringbone pattern or other unique designs, they are ideal for creating feature walls or pinboards. For larger scale applications we recommend using EchoPanel® Meridian.
Colourways
500
454
908
101
442
402
444
542
295
276
551
381
338
330
365
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 550mm (+/-2 mm), Width: 550mm (+/- 2mm), Thickness: 12mm (+/- 7%)
Composition:
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3
BS EN 13501.1: Classification B - s1, d0
GB 8624 B1
ISO 9705: Group 1
BS EN 45545-2 + A1 Annex C: CIT: 0.05
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
Weighted Alpha Coefficient (αw):
EchoPanel® 12mm achieves: Direct fix: 0.30 (MH)
Sound Absorption Average (SAA):
EchoPanel® 12mm achieves:
Direct fix: 0.43
Noise Reduction Coefficient (NRC):
EchoPanel® 12mm achieves:
Direct fix: 0.45
Sound Absorption Class:
D (Direct fix)
Additional Acoustic Information:
Sound Absorption Class result is based on EchoPanel® 12mm. MH = Mid to High Frequency
Sustainability
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
Downloads
- Fire Test Certificate ISO 9705 EchoPanel 7mm 12mm 24mm.pdf
- Fire Test Report AS 1530.3 EchoPanel 12mm.pdf
- Fire Test Report BS EN 13501.1 EchoPanel 12mm.pdf
- Material Safety Datasheet EchoPanel.pdf
- Sound Absorption Test Report Direct fix EchoPanel 12mm.pdf
- Sound Absorption Test Report 20mm air gap EchoPanel 12mm.pdf
- Sound Absorption 50mm air gap EchoPanel 12mm.pdf
- VOC Emission Test Certificate_Groove 45 Tile_Groove 90 Tile_Balance 670 Tile_Balance 1340 Tile.pdf
- Groove 45 Tile 500.jpg
- Groove 45 Tile 454.jpg

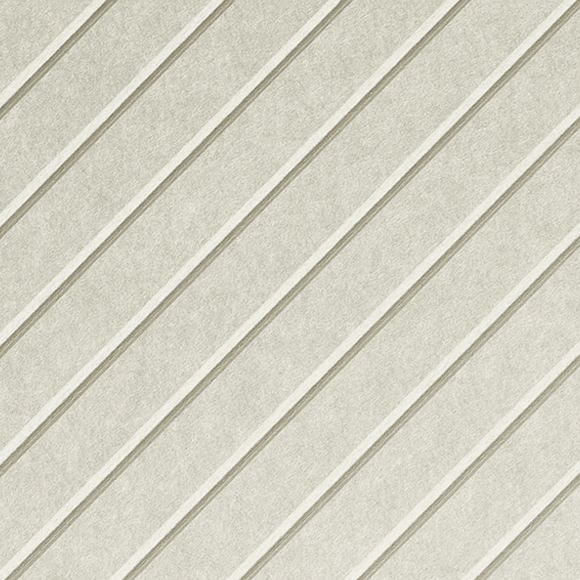

- Groove 45 Tile 908.jpg

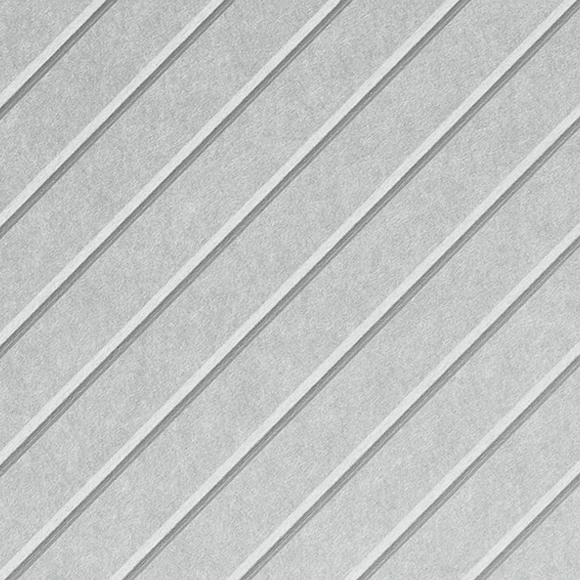

- Groove 45 Tile 101.jpg

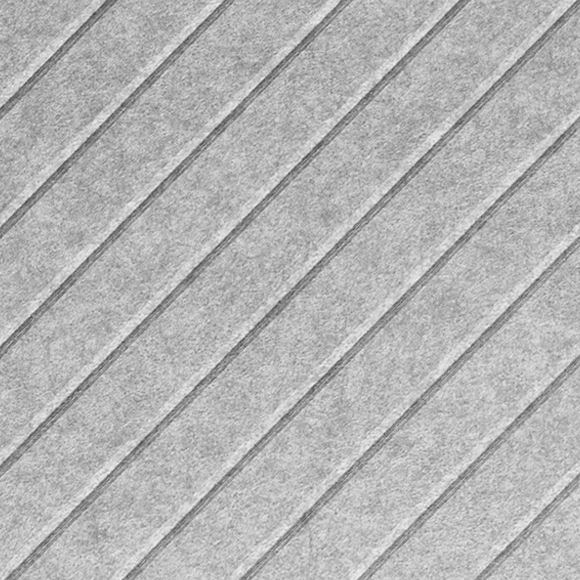

- Groove 45 Tile 442.jpg
- Groove 45 Tile 402.jpg

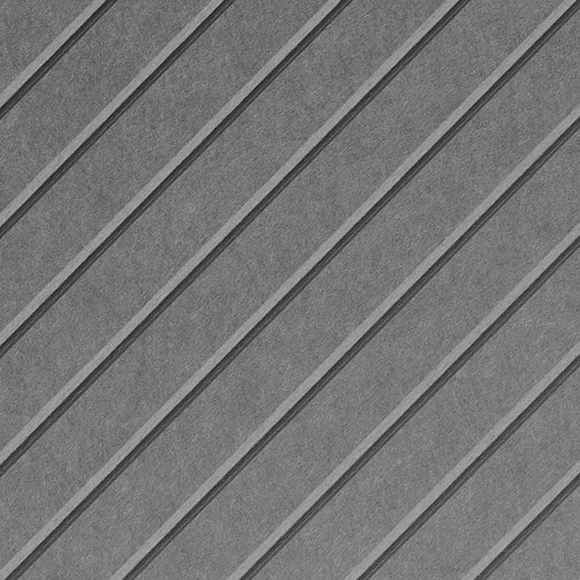

- Groove 45 Tile 444.jpg

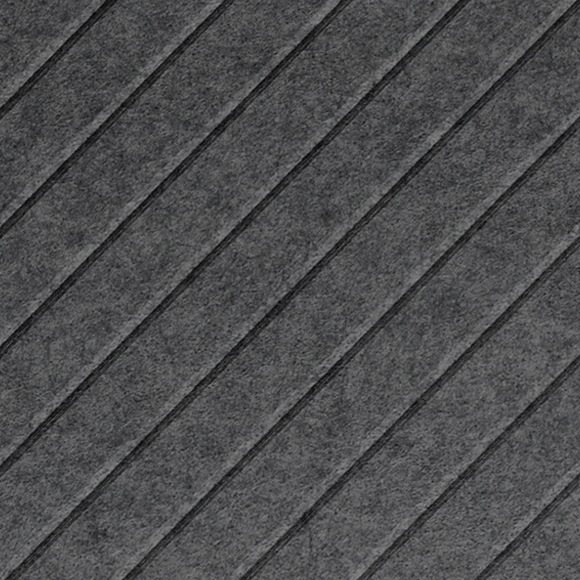

- Groove 45 Tile 542.jpg
- Groove 45 Tile 295.jpg
- Groove 45 Tile 276.jpg

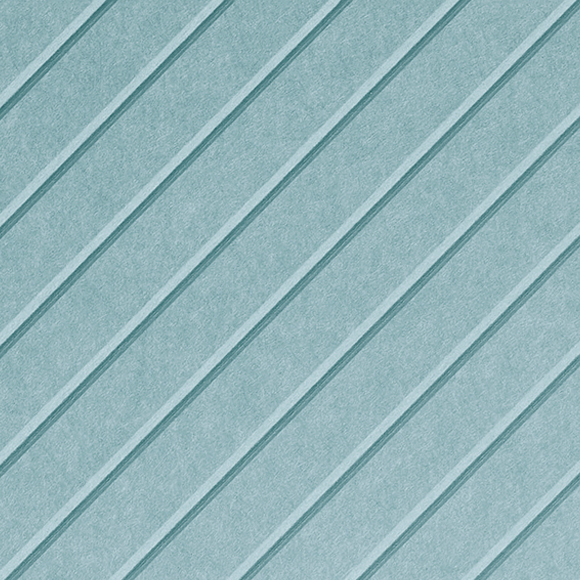

- Groove 45 Tile 551.jpg

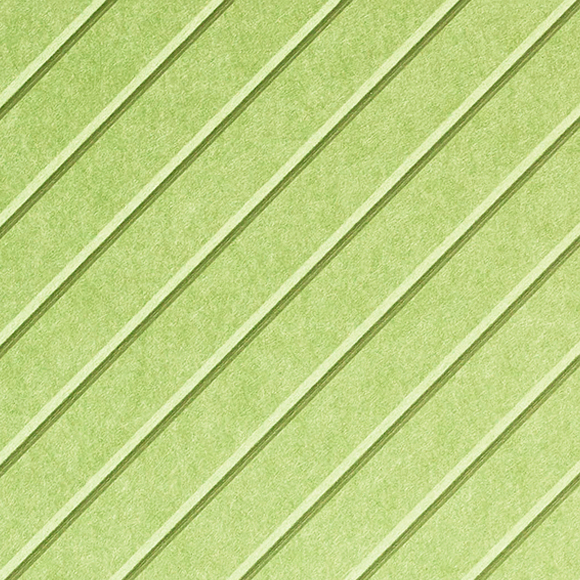

- Groove 45 Tile 381.jpg
- Groove 45 Tile 338.jpg

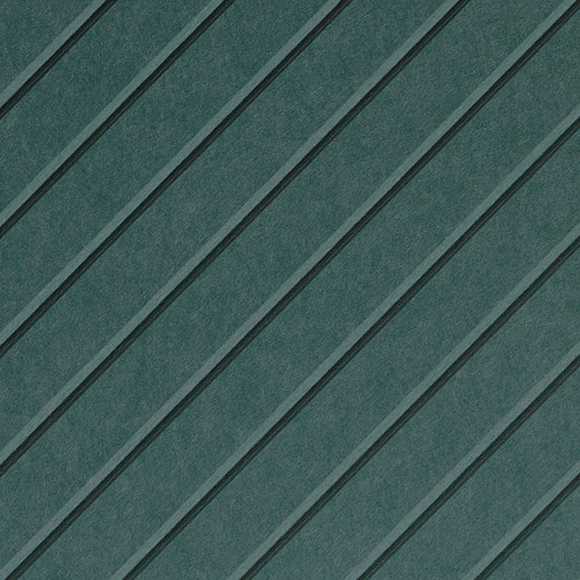

- Groove 45 Tile 330.jpg
